CBS Magnetic Grates Drawer Filter Magnet

The CBS series drawer-type pipeline magnetic separator is specifically engineered for extracting ferrous contaminants from powdered materials in pipeline systems. This innovative drawer filter magnet system features a unique drawer-type design that enables easy maintenance and efficient operation across food processing, plastics, chemicals, and pharmaceutical industries.

Utilizing high-performance neodymium magnets, these robust magnetic grates deliver exceptional separation efficiency without energy consumption. The equipment offers flexible installation through flange or clamp connections, adapting to various pipeline configurations. The compact drawer filter magnet design and permanent magnetic operation ensure reliable performance with minimal maintenance, making these magnetic grates ideal for continuous powder processing applications where consistent purity is essential.

High-Efficiency Magnetic System
Utilizing powerful neodymium magnets in a full grid array, these magnetic grates deliver strong magnetic force for thorough iron removal. The multi-layer filtration design of this drawer filter magnet effectively captures fine ferrous particles, ensuring maximum separation efficiency in powder processing applications.

Innovative Structural Design

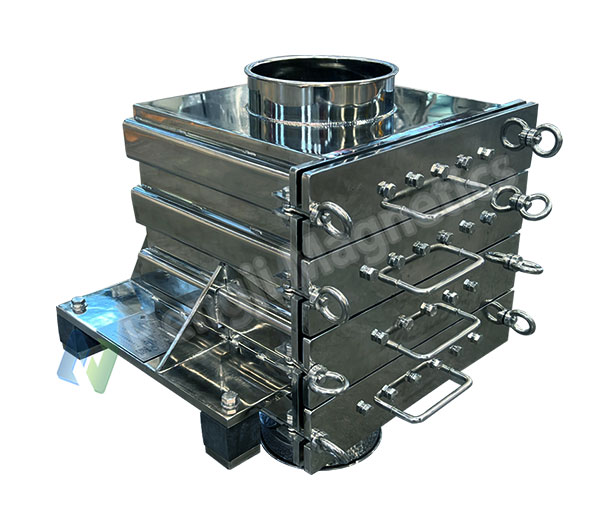

The unique drawer-type configuration enables quick maintenance and cleaning of these magnetic grates. Constructed from SUS304/316 stainless steel, this drawer filter magnet offers superior corrosion resistance with flexible flange or clamp connections that adapt to various pipeline configurations while minimizing space requirements.

Energy-Saving & Eco-Friendly
Operating without external power, these magnetic grates provide permanent separation capability with zero pollution. The drawer filter magnet features low magnetic decay and fully enclosed construction, preventing powder leakage while ensuring long service life with minimal maintenance requirements.

Safety & Reliability
Protected by seamless stainless steel tubes, these magnetic grates maintain stable performance in harsh conditions. The robust drawer filter magnet offers explosion-proof capability for hazardous environments, guaranteeing safe and reliable operation through specialized manufacturing processes.

The CBS drawer filter magnet operates through an efficient combination of permanent magnetic filtration and convenient maintenance access, providing reliable ferrous separation in pipeline powder conveying systems.

Installation Configuration
The equipment integrates directly into powder conveying pipelines through flange or clamp connections, typically positioned in vertical free-fall sections or discharge points. This strategic placement of the magnetic grates ensures complete material exposure to the magnetic field, maximizing separation efficiency as powders flow through the system.

Separation Process
As iron-containing powders pass through the separator pipeline, ferrous contaminants are immediately attracted to the powerful magnetic rods within the drawer filter magnet. The captured iron particles securely adhere to the magnetic surfaces, while purified materials continue uninterrupted through the conveying system. This efficient process makes the magnetic grates particularly effective for maintaining product purity in continuous production environments.

Maintenance Procedure

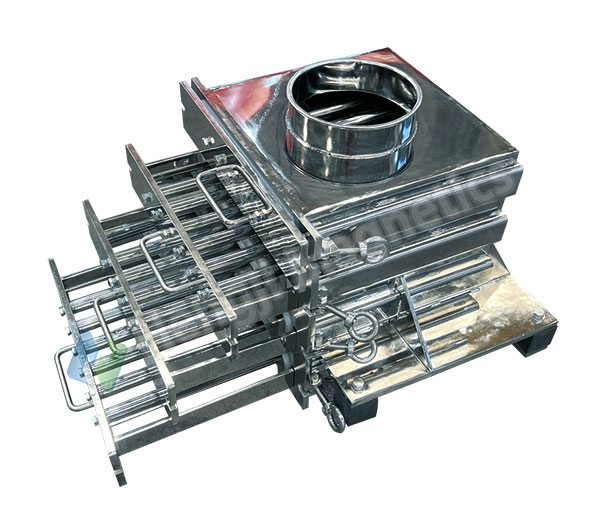

The unique drawer design enables straightforward maintenance: periodically open the fixing knobs and withdraw the drawer assembly from the drawer filter magnet. Remove accumulated ferrous materials using dedicated tools, then reposition and secure the drawer. The magnetic grates resume normal operation immediately after this quick cleaning process, minimizing production downtime.

Industry Applications
The drawer filter magnet provides essential iron removal in food processing for flour, starch, and sugar purification. These efficient magnetic grates serve plastics manufacturing by controlling metal contamination in pellets, while chemical and pharmaceutical industries utilize this drawer filter magnet for raw material purification. The equipment also purifies ceramic powders and wood processing materials, demonstrating exceptional versatility across multiple sectors.

Typical Application Scenarios
These magnetic grates protect pneumatic conveying systems and intercept metals in vertical pipeline sections. The drawer filter magnet performs final purification before powder packaging and ensures raw material quality in precision manufacturing processes, providing critical protection at key stages of production.

Material Specifications
The drawer filter magnet handles powdered and fine granular non-magnetic materials within -20℃ to +40℃ temperature ranges. These reliable magnetic grates operate effectively in environments with up to 90% humidity at 25℃, maintaining consistent performance across various industrial conditions while requiring zero energy consumption.

Technical Consultation
We provide comprehensive pipeline magnetic separation system design and selection guidance for magnetic grates. Our experts offer technical recommendations for installation positions and connection methods, plus customized solutions for special operating conditions of your drawer filter magnet systems.

Installation Support
Detailed installation dimensions and interface parameters ensure proper setup of magnetic grates. We provide essential installation precautions and operational specifications, along with on-site technical guidance for your drawer filter magnet installation and commissioning processes.

Operation Training
Comprehensive training covers equipment principles and structural overview of both magnetic grates and drawer filter magnet systems. We demonstrate proper operation methods and maintenance essentials while emphasizing critical safety precautions and emergency response procedures.

After-Sales Support
Our product quality assurance includes performance commitments for all magnetic grates. We conduct regular follow-up visits and equipment inspections for your drawer filter magnet systems, supplemented by technical consultation, spare parts supply, and maintenance support to ensure continuous operational efficiency.
