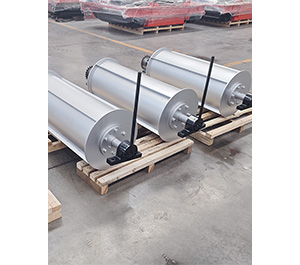

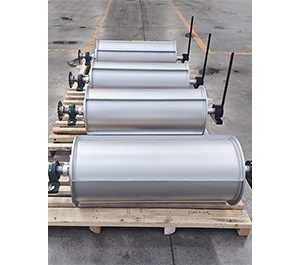

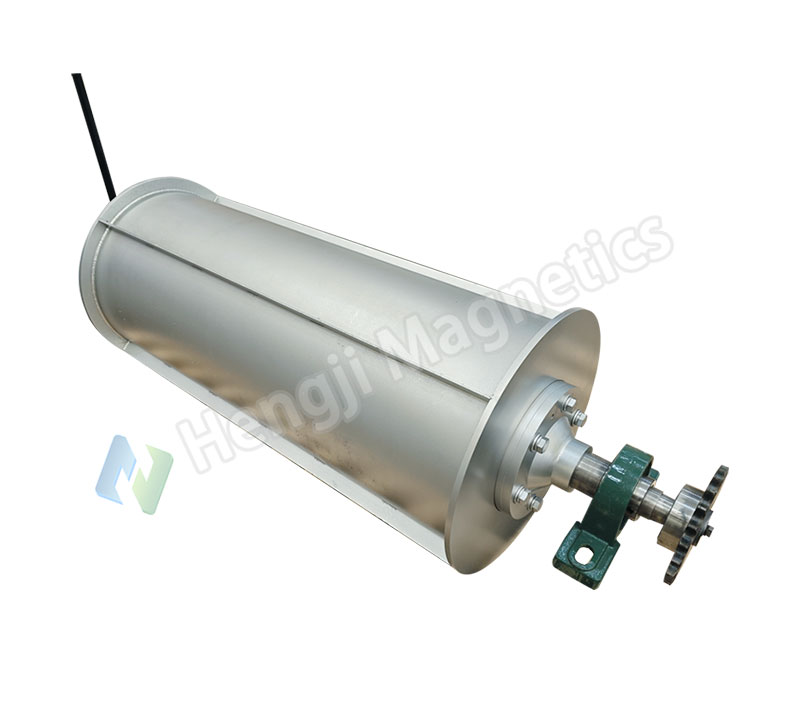

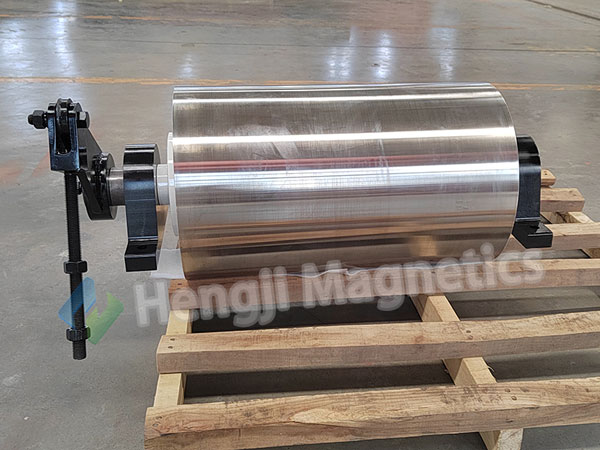

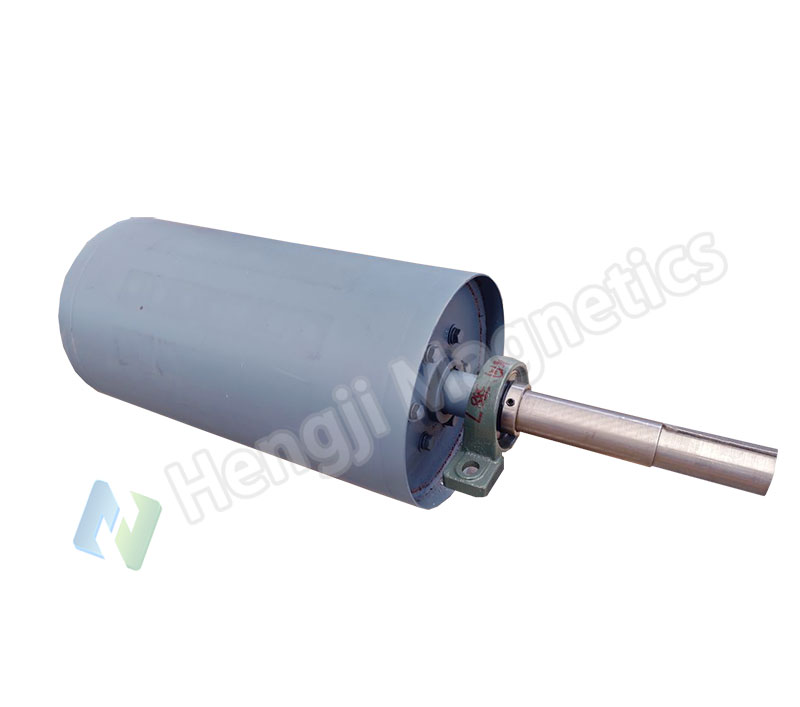

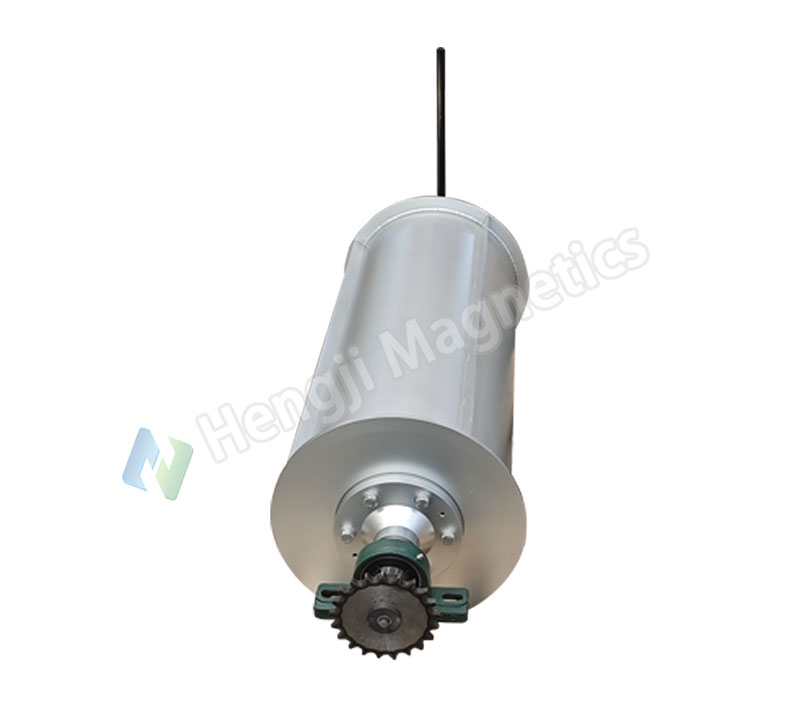

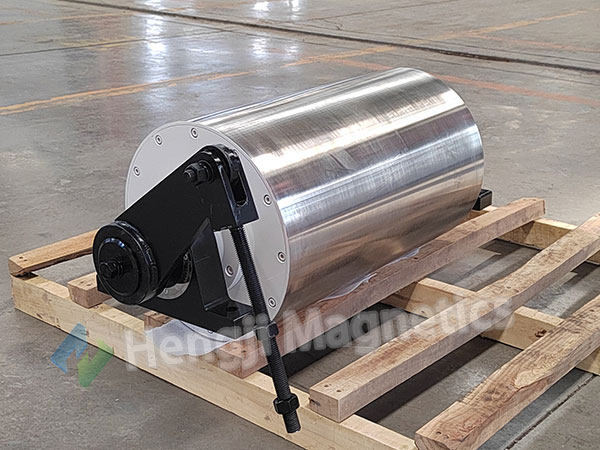

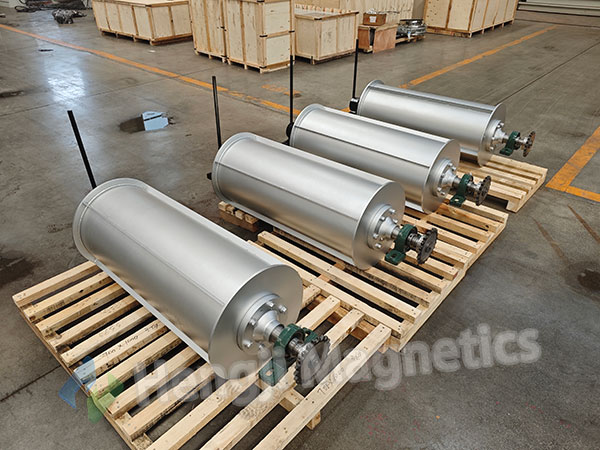

CTZ Permanent Magnetic Pulley

Profile

● Rotating Magnetic System: Multi-layer rotating rods for uniform field distribution and dynamic separation.

● Fully Automated: Handles feeding, separation, and discharge without manual intervention.

●High Efficiency: NdFeB magnets achieve >99.5% iron removal rate for 100-400 mesh powders.

● Smart Control: PLC with variable speed and self-diagnostic alarms.

● Robust Construction: Stainless steel, sealed, and modular for easy maintenance.

● Wide Application: Ideal for powders in food, chemical, ceramic, and mining industries.

Leave Message Inquiry Online

Core Technology

The CTZ Permanent Magnetic Pulley features:

Medium-intensity rare-earth magnetic circuit
Heavy-duty steel drum construction
Optimized magnetic field depth (150-300mm)
Compatible with RCT-type specifications

Key Performance Advantages

Strong Magnetic Force: Effective ferrous capture
Zero Energy Consumption: Permanent magnet operation
Continuous Operation: 24/7 material processing

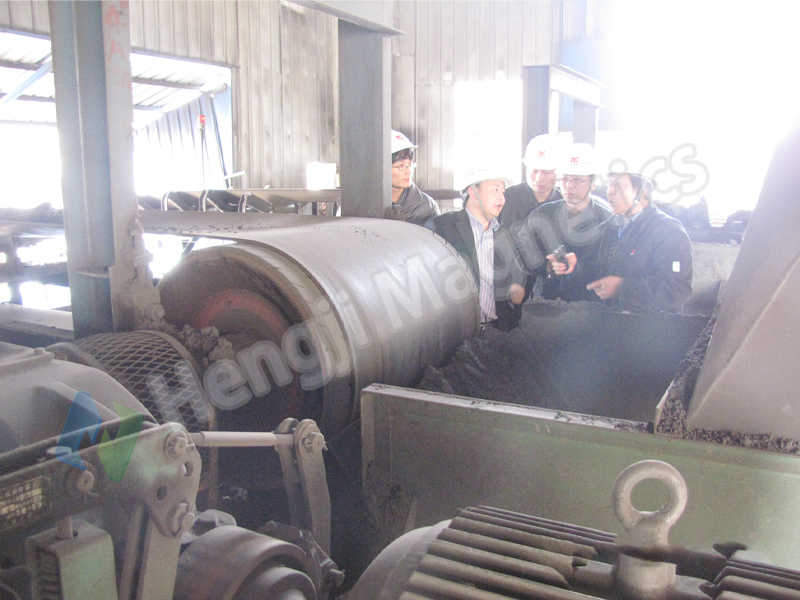

Easy Installation: Direct conveyor integration
Low Maintenance: No electrical components

Material Processing Applications

Powder purification
Granule refinement
Small lump material separation
Ferrous material recovery

Equipment Protection

Prevents crusher damage
Reduces grinder wear
Protects pressing machines
Extends processing equipment lifespan

echnical Specifications

Material Size: Powder (0.1-1mm), Granules (1-10mm), Lumps (10-50mm)
Belt Compatibility: TD-75 standard
Operating Temperature: -20°C to 120°C
Drum Diameters: 300-800mm
Field Strength: Medium-intensity (8,000-12,000 Gauss)

Operational Benefits

Eliminates equipment damage from metal contaminants
Enables valuable material recovery
Requires no electrical power
Simplifies maintenance requirements
Adapts to various material flows

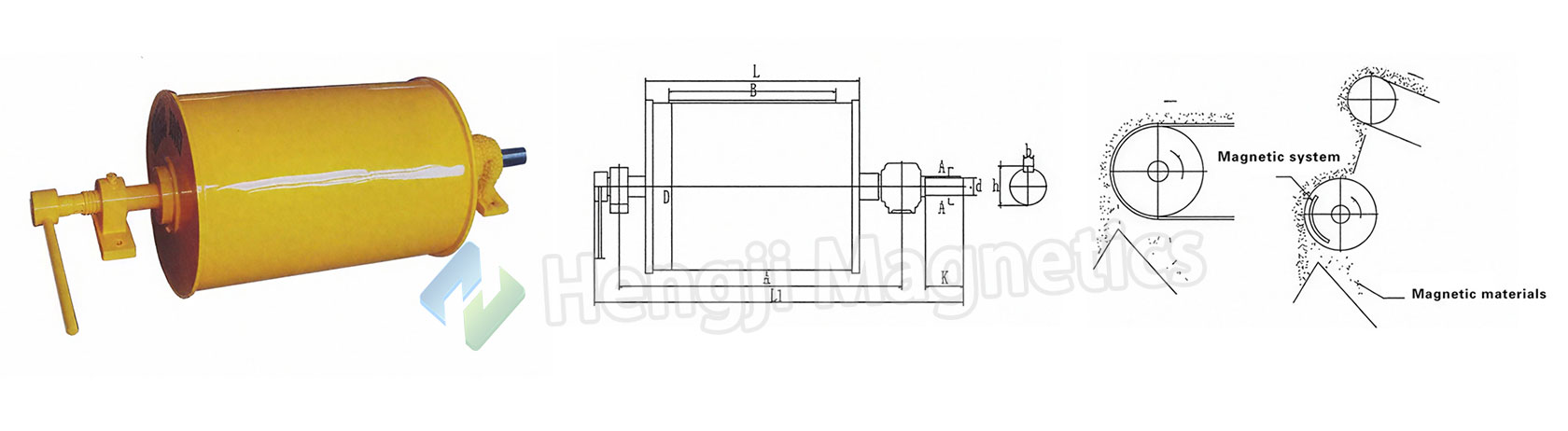

Product Parameters

Model	Drum Diameter (D, mm)	Applicable Belt Width (B, mm)	Drum Length (L, mm)	Max. Magnetic Field Intensity in Brief Table (GS)	Drum Length (L1, mm)	Iron Removal Rate for Powdered Materials (T/h)	Weight (kg)	Overall Dimensions (mm)
								A	L1	K	dØ	h	b
CTZ-32/40	320	400	500	1500~8000	0.8	10	120	728	1010	100	50	53.5	14
CTZ-32/50	320	500	600	1500~8000	1	15	150	850	1115	115	50	53.5	14
CTZ-40/50	400	500	600	1500~8000	2	20	240	850	1115	115	55	60	16
CTZ-50/50	500	500	600	1500~8000	3.5	30	360	850	1115	115
CTZ-32/65	320	650	750	1500~8000	2	20	210	1000	1350	135
CTZ-40/65	400	650		1500~8000	2.8	30	350	1000	1350	135
CTZ-50/65	500	650	750	1500~8000	4.5	40	420				60	64	18
CTZ-63/65	630	650		1500~8000	7	45	830				90	97	24
CTZ-40/80	400	800		1500~8000	8	55	470	1300	1630	175	70	76	20
CTZ-50/80	500	800	950	1500~8000	10	65	600		1630
CTZ-63/80	630	800		1500~8000	10	80	800		1730
CTZ-80/80	800	800		1500~8000	12	100	980				90	97	24
CTZ-63/100	630	1000	1150	1500~8000	12	120	1200				90	97	24
CTZ-80/100	800	1000	1150	1500~8000	15	140	1300	1500	2000	215	110	119	32
CTZ-100/120	1000	1200	1400	1500~8000	20	180	1580	1750	2270	255	130	140	36
CTZ-125/140	1250	1400	1600	1500~8000	30	250	1950	2000	2555	275	150	161	40
