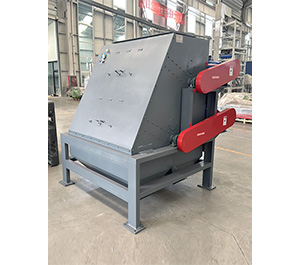

CXJ Dry High Intensity Perm Roll Magnetic Separator Product Overview
The CXJ Series represents advanced dry magnetic separation technology for continuous automatic removal of ferrous contaminants from dry powders. This high-performance perm roll magnetic separator utilizes NdFeB permanent magnets to deliver exceptional magnetic strength through computer-optimized magnetic circuits.
As an efficient dry high intensity magnetic separator, the CXJ series serves abrasives, refractories, non-metallic minerals, carbon black, and food processing industries. The compact design and automated feeding system provide significant advantages in modern production environments where space optimization and operational efficiency are paramount. ISO9001 certified, this reliable perm roll magnetic separator ensures consistent performance and product purity across various industrial applications.
CXJ Dry High Intensity Perm Roll Magnetic Separator Key Features
Optimized Magnetic Circuit Design
Utilizing computer-simulated magnetic circuits, this perm roll magnetic separator ensures scientific magnetic field distribution. High-performance NdFeB magnets provide stable intensity, while the multi-pole system enhances material turnover, making this dry high intensity magnetic separator highly efficient for various applications.
Flexible Adjustability
Featuring vibratory feeding with stepless regulation, this perm roll magnetic separator allows precise tuning according to material characteristics. The magnetic field adjustment lever and multiple strength options (800-7,000Gs) make this dry high intensity magnetic separator adaptable to diverse processing requirements.
Reliable Transmission System
The three-phase motor drive with adjustable rotation direction ensures proper alignment in this perm roll magnetic separator. Clearly labeled connections and robust construction guarantee stable operation for this dry high intensity magnetic separator under continuous working conditions.
Safety Protection Design
With reliable grounding and stainless steel components, this perm roll magnetic separator ensures operational safety. The compact structure with low noise emission makes this dry high intensity magnetic separator suitable for various industrial environments while maintaining comprehensive safety protocols.
CXJ Dry High Intensity Perm Roll Magnetic Separator Working Principle
The CXJ dry high intensity magnetic separator operates on the fundamental principle of mineral separation through magnetic differences. This advanced perm roll magnetic separator subjects materials entering the separation zone to combined magnetic and mechanical forces, causing minerals with different magnetic properties to follow distinct trajectories for effective separation.
Magnetic Separation Fundamentals
Within this dry high intensity magnetic separator, a fixed internal magnetic system (with adjustable angle via connecting rod) creates a powerful magnetic field. The stainless steel drum surface enables ferrous materials to be extracted and adhere to the drum surface during rotation in this efficient perm roll magnetic separator.
Operational Process
As materials transport through the magnetic field range in this dry high intensity magnetic separator, captured ferrous contaminants rotate with the drum. Beyond the magnetic field, these materials discharge through combined gravity and centrifugal force action. This reliable working principle makes the CXJ perm roll magnetic separator particularly effective for continuous processing of dry powder materials requiring high-purity outputs.
CXJ Dry High Intensity Perm Roll Magnetic Separator Product Parameters
|
Model
|
Overall Dimensions (L×W×H, mm)
|
Drum Length L (mm)
|
Drum Diameter D (mm)
|
Maximum Surface Magnetic Induction Intensity (GS)
|
Number of Drums
|
Drum Rotation Speed (r/min)
|
Production Capacity T/h
|
Material Particle Size (mm)
|
Motor Power (kw)
|
|
CXJ-60-I
|
950×1050×1100
|
600
|
300
|
1000~7000
|
1
|
17 – 82
|
≤2
|
≤5
|
0.55
|
|
CXJ-60-II
|
1070×1050×1560
|
600
|
300
|
First Drum 1000~7000
Second Drum 1000~7000
|
2
|
≤3
|
≤5
|
1.5
|
|
CXJ-60-III
|
1250×1070×1990
|
600
|
300
|
First Drum 1000~7000
Second Drum 1000~7000
Third Drum 1000~7000
|
3
|
≤4
|
≤6
|
1.5
|
|
CXJ-80-II
|
1420×1260×1670
|
800
|
400
|
First Drum 1000~7000
Second Drum 1000~7000
|
2
|
≤5
|
≤8
|
1.5
|
|
CXJ-80-III
|
1770×1260×2180
|
800
|
400
|
First Drum 1000~7000
Second Drum 1000~7000
Third Drum 1000~7000
|
3
|
≤6
|
≤8
|
2.2
|
|
CXJ-100-II
|
1620×1520×1970
|
1000
|
500
|
First Drum 1000~7000
Second Drum 1000~7000
|
2
|
≤7
|
≤10
|
2.2
|
|
CXJ-100-III
|
2260×1600×3320
|
1000
|
500
|
First Drum 1000~7000
Second Drum 1000~7000
Third Drum 1000~7000
|
3
|
≤10
|
≤10
|
3.0
|
|
Note: The maximum surface magnetic induction intensity value is determined according to different mineral iron – bearing conditions and different separation requirements. The magnetic field intensity range can be customized from 1000GS to 7000GS.
Industry Applications
The CXJ Magnetic Drum Separator in Housing excels in:
• Abrasives & Refractories (silica sand/alumina)
• Chemical Processing (TiO₂/pharmaceuticals)
• Food Manufacturing (flour/starch/additives)
• Mineral Recovery (non-metallic ores)
|
CXJ Dry High Intensity Perm Roll Magnetic Separator Applications
Primary Industry Applications
The CXJ perm roll magnetic separator serves essential iron removal functions in the abrasives industry and enhances product purity in refractory materials production. This versatile dry high intensity magnetic separator effectively processes non-metallic minerals like quartz and feldspar while ensuring food safety in grain processing and purifying chemical raw materials.
Applicable Material Characteristics
This efficient perm roll magnetic separator handles dry powdered materials across a broad particle size range. The dry high intensity magnetic separator accommodates materials from 10-1500 mesh fineness, making it ideal for continuous automated production systems requiring consistent iron removal performance.
Process Configuration Solutions
The flexible design allows single-unit operation or multi-unit combinations of this perm roll magnetic separator. Configurable from single to quadruple drum arrangements, this dry high intensity magnetic separator integrates seamlessly with upstream and downstream equipment, adapting to various capacity requirements and process layouts for multi-stage separation applications.

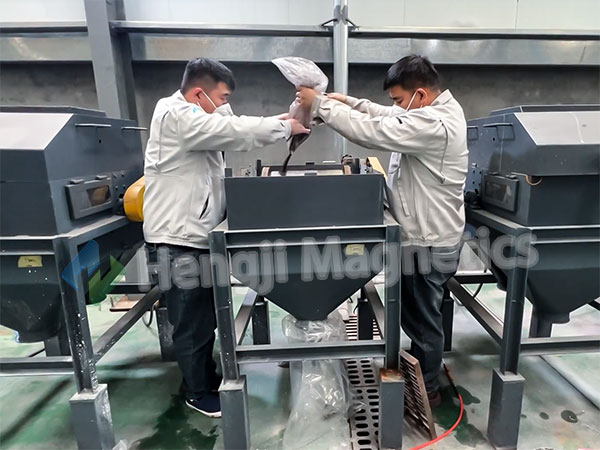

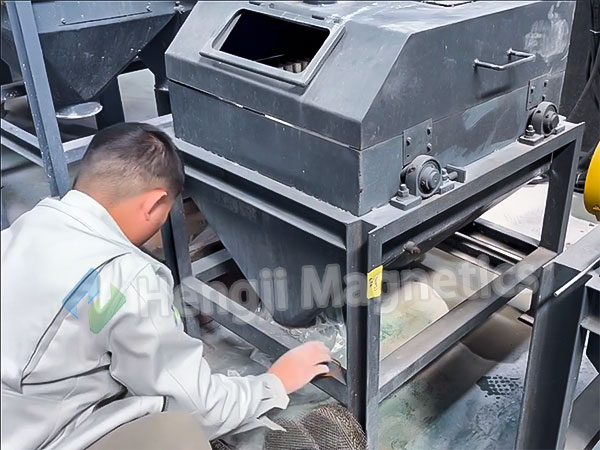

CXJ Dry High Intensity Perm Roll Magnetic Separator Services
Installation Guidance
We provide detailed installation manuals and professional guidance for the perm roll magnetic separator, ensuring proper level installation and grounding. Our technicians assist with drum rotation verification and comprehensive setup for optimal operation of your dry high intensity magnetic separator system.
Operation Training
Complete training covers the startup sequence and operational adjustments for the perm roll magnetic separator. We provide guidance on magnetic field angle optimization and feeding frequency tuning for your dry high intensity magnetic separator, along with safety procedures and maintenance essentials to ensure efficient operation.
Maintenance Support
Comprehensive maintenance programs include wear parts lists and scheduled inspection requirements for the perm roll magnetic separator. We offer troubleshooting methodologies and preventive maintenance planning to maintain peak performance of your dry high intensity magnetic separator system.
After-Sales Service
Our support includes equipment debugging and trial operation for the perm roll magnetic separator. We maintain detailed customer records and provide genuine spare parts with continuous technical support for your dry high intensity magnetic separator throughout its operational lifecycle.
