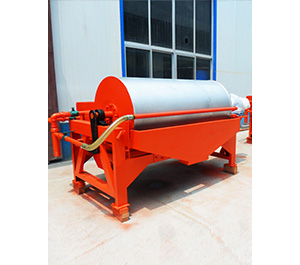

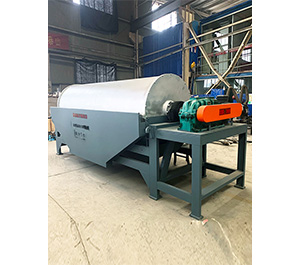

CTS Downstream Industrial Rotary Drum Magnetic Separator

The CTS Series Downstream Wet Magnetic Separator represents advanced technology for processing coarse-grained strongly magnetic materials. This robust industrial magnetic separator features a sophisticated downstream tank design that enhances separation efficiency through optimized material flow dynamics. The equipment’s high-performance rare-earth magnetic system delivers exceptional strength, making it suitable for roughing and cleaning operations.

As an efficient rotary drum separator, the CTS series processes materials ranging from 6-0mm particle size. The permanent magnet design eliminates external power consumption while maintaining reliable performance. This advanced industrial magnetic separator effectively processes magnetic iron ore and pyrrhotite, making it ideal for operations requiring high recovery rates. The vulcanized wear-resistant rubber drum surface ensures 2-3 years of service life, providing long-term operational economy.

Optimized Magnetic System Design
This advanced industrial magnetic separator utilizes a rare-earth composite magnetic system compliant with industry standards. Featuring high-strength adhesive bonding and complete water resistance, the rotary drum separator delivers specially optimized magnetic field distribution for superior separation performance.

Downstream Tank Structure
The specially designed tank structure in this industrial magnetic separator prevents material clogging while enhancing processing efficiency. The downstream configuration with slurry flow matching drum rotation makes this rotary drum separator particularly effective for coarse-grained material processing with optimized recovery rates.

Reliable Transmission System
Offering flexible left/right transmission configurations, this industrial magnetic separator features cycloidal reducer drive with speeds up to 45r/min. The motor power range (1.1-5.5kW) accommodates various processing capacities, ensuring this rotary drum separator operates reliably in challenging environments.

Wear-Resistant Durability Design
The direct vulcanized rubber drum surface in this industrial magnetic separator provides 3.5MPa bonding strength. With stainless steel construction and minimal drum-to-magnetic system distance, this rotary drum separator reduces maintenance requirements while ensuring long-term operational economy.

The CTS industrial magnetic separator operates through an efficient downstream principle specifically designed for coarse-grained mineral processing. This advanced rotary drum separator utilizes a unique material flow pattern where slurry movement aligns with drum rotation direction, optimizing the separation process for larger particle sizes.

Magnetic Separation Process
As slurry enters the separation zone of this industrial magnetic separator, strongly magnetic minerals are instantly extracted and adhere to the rotating drum surface. The rotary drum separator effectively separates these captured materials from weakly magnetic and non-magnetic particles, which are carried away by the water flow through the downstream design configuration.

Concentrate Discharge System
The captured magnetic minerals transport with the drum rotation beyond the magnetic field zone in this industrial magnetic separator. High-pressure water sprays then efficiently discharge them into the concentrate collection system, completing the separation cycle in this reliable rotary drum separator.

Optimized Processing Advantage
The downstream flow pattern in this industrial magnetic separator provides efficient processing of coarse-grained materials where maximum mineral recovery is essential. This operational principle makes the CTS rotary drum separator particularly effective for high-volume applications requiring substantial processing capacity for larger particle size materials.

Primary Application Fields
The CTS industrial magnetic separator performs roughing and cleaning operations for 6-0mm strongly magnetic materials. This versatile rotary drum separator effectively removes strongly magnetic minerals from non-magnetic mixtures, processing magnetic iron ore and pyrrhotite in large-scale operations requiring high capacity.

Process Characteristics
With high processing capacity (CTS-44 model handling 1-2 tons/hour), this industrial magnetic separator accommodates substantial throughput requirements. Multiple units of this rotary drum separator can connect in series for multi-stage separation, making it suitable for integration into comprehensive mineral processing circuits.

Typical Application Scenarios
The industrial magnetic separator serves iron ore concentrators for roughing and cleaning operations. This reliable rotary drum separator performs iron removal in non-metallic mineral processing and heavy medium recovery in coal preparation, while supporting large-scale processing lines requiring continuous operation.

Installation & Commissioning
We provide detailed installation guidance for the industrial magnetic separator, ensuring frame levelness within 2mm tolerance. Comprehensive testing includes no-load operation and critical parameter optimization for your rotary drum separator system to achieve optimal performance.

Operation Training
Complete operational procedure training covers the industrial magnetic separator system. We provide routine maintenance guidance and troubleshooting methodologies for your rotary drum separator, along with comprehensive safety protocols and operational guidelines.

Maintenance Support
Monthly bearing lubrication and six-monthly reducer servicing maintain the industrial magnetic separator. Our preventive maintenance program includes annual oil seal replacement and inspection protocols to ensure long-term reliability of your rotary drum separator.

After-Sales Service
We provide comprehensive wear parts identification and genuine spare parts for the industrial magnetic separator. Regular equipment inspection and professional technical support maintain the operational efficiency of your rotary drum separator system.
