Beyond Purification: How the Permanent Wet Magnetic Separator Achieves 99.99% Purity

Achieving extreme product purity is not just a goal; it’s an exacting engineering discipline. In industries where a single trace of ferrous contamination compromises product value and performance, standard separation is insufficient. The permanent wet magnetic separator represents a paradigm shift. This article explores how advanced belt magnetic separator technology, specifically designed for wet processes, orchestrates a combination of brute magnetic force and precise mechanical control to deliver unparalleled purity levels consistently.

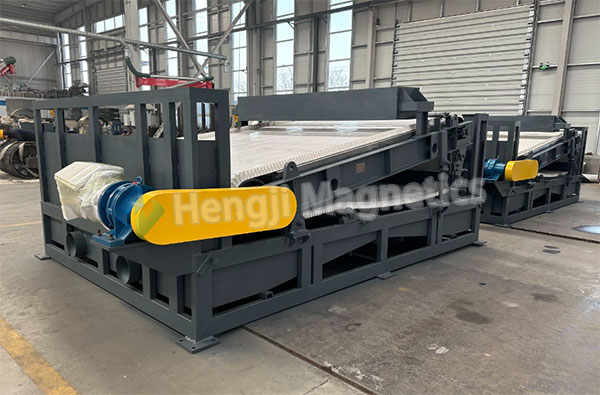

The Magnetic Foundation: Unmatched Strength in a Permanent Wet Magnetic Separator

The quest for purity begins with the power to capture the finest, most weakly magnetic particles. A high-performance permanent wet magnetic separator is built on an extraordinary magnetic core.

• Ultra-High Intensity: Utilizing dense arrays of high-grade Rare Earth Neodymium magnets, these systems generate surface field strengths reaching up to 18,000 Gauss. This provides the foundational force necessary to attract micron-sized impurities.

• Precision Magnetic Circuit: The magnets are arranged in a specific, opposed-pole configuration. This design creates not just a strong field, but an exceptionally high magnetic gradient—a steep magnetic “slope” that generates maximum pulling force precisely where the slurry passes, ensuring no weak magnetic contaminant goes unnoticed.

The Separation Stage: The Intelligent Design of the Belt Magnetic Separator

Raw magnetic power must be applied intelligently. The belt magnetic separator component is the stage where purification happens, and its design is critical for achieving 99.99% purity.

• Extended Separation Zone: Unlike compact drum designs, the belt magnetic separator features a long, horizontal magnetic bed. This provides an extended residence time as the slurry travels across it, allowing multiple opportunities for magnetic particles to be captured—a crucial factor for high recovery rates.

• Counter-Flow Washing & Discharge: The slurry flow direction is opposite to the movement of the cleaning belt. This “counter-current” principle ensures that captured impurities are continuously washed and carried away from the clean product stream, preventing re-contamination and enabling exceptionally clean magnetic discharge.

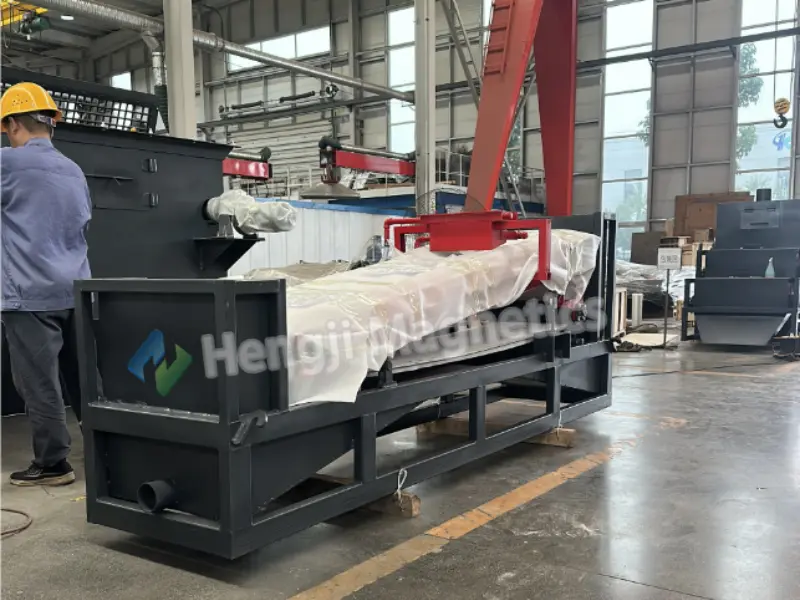

The Precision Control System: Fine-Tuning the Permanent Wet Magnetic Separator

Consistent ultra-purity requires precise control over every process variable. A modern permanent wet magnetic separator is equipped for meticulous adjustment.

• Variable Speed Drive: The belt magnetic separator‘s speed is controlled by a variable frequency drive (VFD). Operators can finely tune the belt speed to optimize contact time based on particle size and magnetic susceptibility, directly influencing final concentrate grade.

• Modular Wash Water System: Independent spray bars with adjustable flow controls allow operators to apply the exact amount of rinse water at different points—ensuring thorough cleaning of the magnetic concentrate without diluting the non-magnetic product.

• Feed Uniformity: An integrated feed box with an agitation system guarantees a consistent slurry density and even distribution across the full width of the belt magnetic separator, which is essential for uniform magnetic treatment and predictable results.

Engineering for Consistent Reliability and Zero Contamination

A single impurity introduced by the equipment itself voids the entire process. The design of a top-tier permanent wet magnetic separator eliminates this risk.

• Fully Sealed Magnet Bank: The powerful magnetic assembly is hermetically sealed in a stainless steel casing, protecting it from the corrosive slurry environment. This ensures the magnetic strength remains stable for decades, with minimal degaussing, guaranteeing long-term performance consistency.

• Non-Magnetic, Corrosion-Resistant Construction: All wetted parts—the tank, spray bars, and belt components—are fabricated from non-magnetic stainless steel or specialized polymers. This prevents any ferrous wear debris from entering the product and provides excellent corrosion resistance for harsh chemical environments.

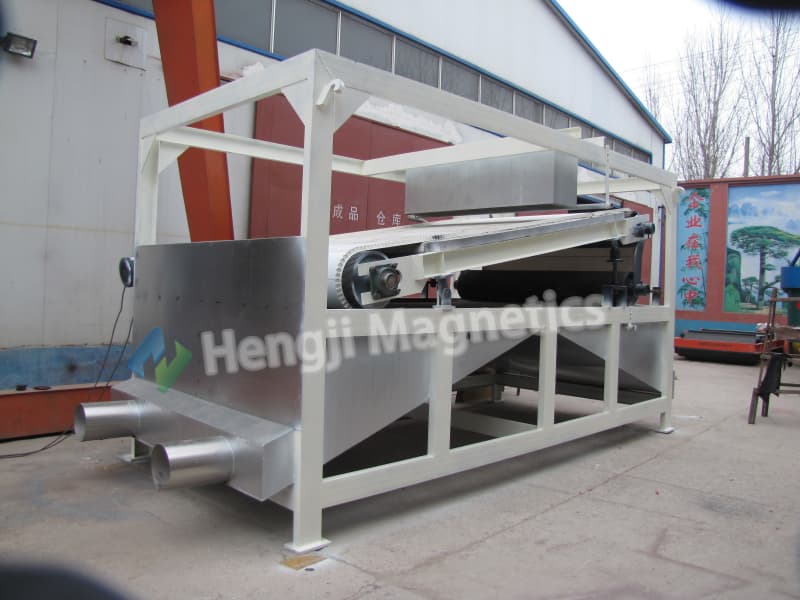

Applications: Where 99.99% Purity is Mandatory

This technology is transformative for sectors where purity defines product grade and price.

• High-Purity Quartz & Feldspar for Glass/Electronics: Removing even trace iron to achieve the ultra-low Fe₂O₃ levels required for solar glass and semiconductor crucibles.

• Premium Kaolin & Clay for Paper/Coatings: Enhancing brightness and whiteness by eliminating fine ferrous impurities.

• Fine Ceramic Powders: Ensuring color consistency and sintered properties by achieving near-absolute magnetic cleanliness.

• Specialty Chemical & Pharmaceutical Precursors: Safeguarding sensitive catalysts and final products from metallic contamination.

Conclusion: The New Standard in Mineral Purification

The journey to 99.99% purity is not achieved by chance, but by design. The advanced permanent wet magnetic separator, with its intelligent belt magnetic separator system, represents a complete solution. It combines extreme magnetic force with a precisely controlled separation environment and failsafe, non-contaminating construction. For processors who cannot compromise on quality, investing in this level of technology is not an expense—it is the essential foundation for producing premium-grade materials, commanding superior market prices, and building a reputation for uncompromising excellence.
