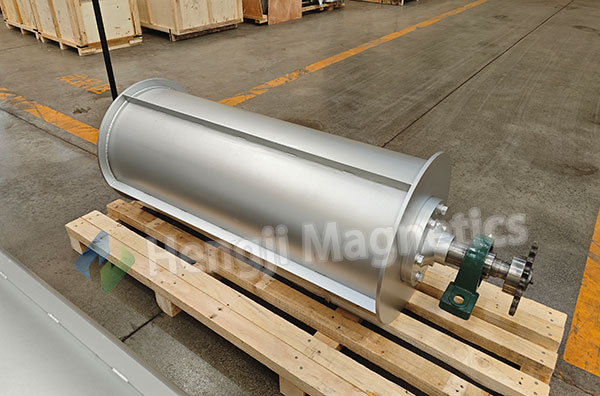

The Physics: What Magnetic Force Must Overcome
The reason particle size dictates magnetic circuit design lies in the forces competing against magnetic capture.
For Coarse Material (Particles above 6mm):
Large, heavy particles are dominated by gravity and inertia. They fall quickly and carry momentum. To capture them, the permanent magnetic drum must generate a force powerful enough to reach deep into the material burden and physically lift these heavy objects against their weight. The key requirement here is magnetic field strength and penetration depth.
For Fine Powder (Particles below 0.1mm):
Microscopic particles face a different set of enemies: fluid drag from air or water, and surface adhesion. They are easily carried away by the flow or stick to non-magnetic particles. Capturing them requires an intense, sharply focused magnetic force that can act over microscopic distances. The critical requirement here is magnetic field gradient—the rate at which field strength changes over distance.

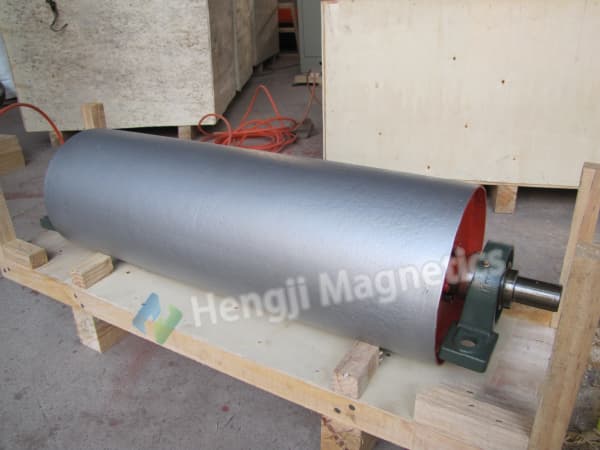

Magnetic Circuit Design Option 1: Wide Pole Spacing for Coarse Material
When your application involves recovering or removing large, heavy particles, your permanent magnetic drum needs a magnetic circuit designed for depth and power.
This configuration features fewer magnetic poles around the drum circumference, typically four to six poles. The pole pieces are wide with significant spacing between north and south poles, and the magnet blocks are thicker to project the field deeper into the material burden.
The result is a broad, deep-reaching magnetic field that penetrates far into the material layer on the conveyor or feeder. It acts like a powerful magnetic hand that can reach through thick material to grab heavy tramp metal or magnetic ore particles. While the peak field gradient may be moderate, the depth of effective capture is maximized.
This magnetic separation drum configuration is ideal for primary recovery of coarse magnetite or ferrosilicon, removing large tramp iron from run-of-mine ore on belt conveyors, and scrap metal recovery from heavy shredder feed.

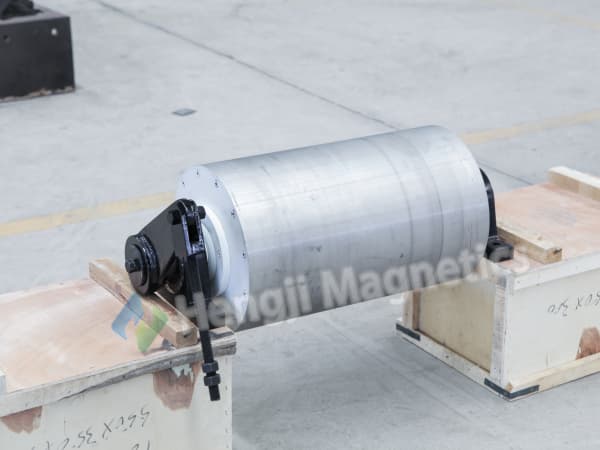

Magnetic Circuit Design Option 2: Narrow Pole Spacing for Fine Powder
For applications demanding ultra-high purity from fine powders, the permanent magnetic drum must be engineered with a completely different magnetic architecture.
This design features many magnetic poles around the drum circumference—typically twelve, eighteen, or even more. The pole pieces are very narrow with minimal spacing, and the magnet arrays are precisely and tightly packed.
This configuration creates an extremely high magnetic gradient at the drum surface. Where north and south poles alternate rapidly, the magnetic field lines are compressed and distorted, generating intense magnetic tweezers that can capture micron-scale particles. The field may not penetrate deeply, but at the surface where fine powder contacts the drum, its capturing power is extraordinary.
This permanent magnetic drum configuration excels at purifying silica sand, quartz, and feldspar for glass and ceramics, removing fine iron oxides from food ingredients and additives, and cleaning refractory materials and industrial minerals.
A Simple Analogy
Think of it this way. A wide-pole magnetic separation drum for coarse material is like a heavy-duty rake—perfect for gathering large rocks from soil. A multi-pole permanent magnetic drum for fine powder is like an ultra-fine comb—ideal for removing dandruff from hair.
Using the wrong tool—a rake to comb hair, or a comb to rake rocks—produces poor results. The same principle applies to magnetic separation.

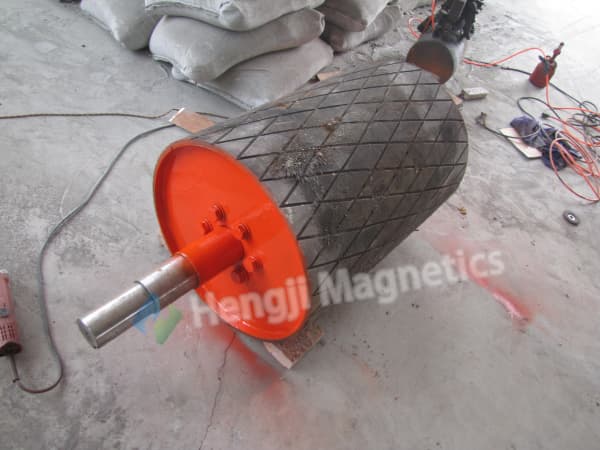

Summary: Your Selection Guide
When your material is coarse, heavy, and above six millimeters, choose a permanent magnetic drum with wide pole spacing, fewer poles, and deep field penetration. Focus on field strength.
When your material is fine, light, and below 0.1 millimeters, choose a magnetic separation drum with narrow pole spacing, many poles, and high surface gradient. Focus on field gradient.
The simple rule is this: deep force for chunks, sharp gradient for fines.
Of course, real-world applications also involve variables like magnetic susceptibility, moisture content, and throughput rates. But mastering this fundamental relationship between particle size and magnetic circuit design is the first and most critical step toward selecting the magnetic separation drum that will deliver reliable, efficient performance for your specific material. Choose the wrong magnetic circuit, and even the strongest magnets will disappoint. Choose correctly, and your permanent magnetic drum becomes a precision tool for value recovery and product purity.
