Cooling System Revolution: Oil, Air, or Heat Pipes for Your Suspended Electro Belt Magnet

In industrial ferrous removal, heat management is what separates exceptional magnetic separators from the rest. Whether you operate a powerful suspended electro magnet for deep extraction or a continuous-cleaning suspended belt magnet, the efficiency of its cooling system directly dictates performance, longevity, and total operating cost. This analysis explores the three core cooling technologies—Oil-Cooled, Air-Cooled, and Next-Generation Heat Pipe systems—to guide your investment.

Understanding the Heat Challenge in Magnetic Separation

The electromagnetic coil at the core of every separator generates intense heat during operation. Uncontrolled heat reduces magnetic force, increases energy consumption, and leads to premature failure. For a suspended belt magnet running over a conveyor or a suspended electro magnet above a chute, consistent cooling is non-negotiable for reliable protection.

Technology Deep Dive: How Each System Works

1. Oil-Cooled Systems: The Heavy-Duty Standard

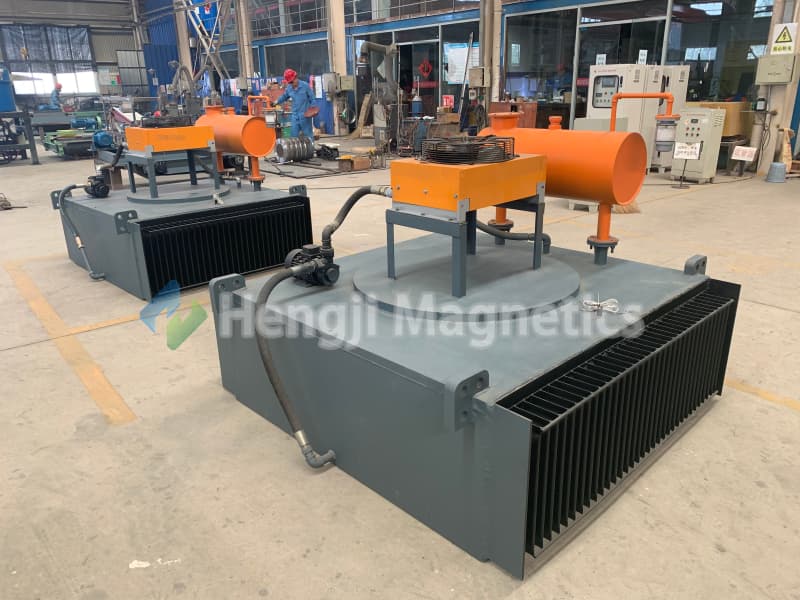

This technology relies on a sealed, forced-oil circulation loop. The coil of the suspended electro magnet is immersed in transformer oil. Heat is transferred to the oil, which is pumped to an external radiator, cooled by fans, and recirculated. Its fully sealed design offers unmatched coil protection.

2. Air-Cooled Systems: The Efficient Workhorse

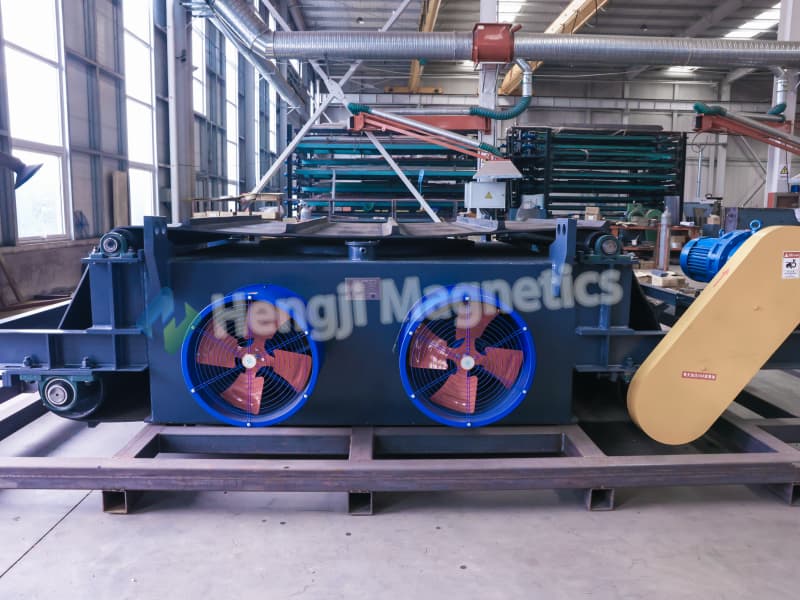

Here, a suspended belt magnet uses direct forced-air cooling. Encapsulated coils release heat through the magnet body, which is equipped with enhanced fins. High-capacity fans blow ambient air across these surfaces, providing effective cooling through direct heat exchange.

3. Heat Pipe Technology: The Next-Gen Leap

This advanced method uses phase-change principles within sealed pipes. Attached to the coil, the heat pipe’s working fluid vaporizes at the hot end, moves instantly to cooling fins, condenses, and returns. This passive cycle offers rapid, uniform heat transfer for a suspended electro magnet without moving parts in its core.

Performance Comparison: Efficiency & Magnetic Stability

Cooling Capacity & Control:

• Oil-Cooled leads in raw cooling power and stability, ideal for high-duty cycles.

• Air-Cooled performs well in clean, temperate environments but can struggle with high ambient heat or clogged fins.

• Heat Pipe systems excel in thermal response and uniformity, quickly eliminating hot spots to maintain consistent coil temperature.

Magnetic Force Consistency:

Stable temperature means stable magnetic force. The suspended belt magnet with oil-cooling often maintains the most consistent field strength. Heat pipe technology rivals this stability by preventing localized overheating. Air-cooled systems are reliable but more susceptible to performance dips if cooling airflow is restricted.

Durability & Operational Reality: Maintenance & Lifespan

Environmental Sealing:

• The oil-cooled suspended electro magnet is a fortress against dust, moisture, and corrosion.

• Air-cooled designs offer good protection but require airflow, creating a potential environmental interface.

• Heat pipe technology enables a fully sealed coil compartment, matching oil-cooled protection without fluid leak risks.

Maintenance Demands:

• Oil-Cooled: Requires active monitoring—checking oil levels, changing fluid, and maintaining pumps and radiators.

• Air-Cooled (Suspended Belt Magnet): Needs regular cleaning of fins and verification of fan operation.

• Heat Pipe: Offers near-zero core maintenance. Only the external fins may require occasional cleaning.

Reliability & Failure Points:

• Oil-Cooled: Potential issues include pump or fan failure and seal leaks, but the coil is superbly protected.

• Air-Cooled: Primary risk is fan motor failure, which can lead to rapid overheating.

• Heat Pipe: Has minimal failure points—no pumps or internal fans—providing theoretically the highest system reliability for a suspended electro magnet.

Making the Right Choice for Your Operation

Your operational environment and priorities should guide your selection:

• For the most challenging conditions—high dust, moisture, or continuous heavy loads—the rugged oil-cooled suspended electro magnet remains the benchmark, accepting its maintenance needs for top performance.

• In standard industrial settings with good air quality, the air-cooled suspended belt magnet delivers excellent value, balancing effective cooling with straightforward upkeep.

• For operators prioritizing maximum uptime and minimal lifetime maintenance, especially in remote or automated plants, next-generation heat pipe technology represents the future. It offers sealed reliability without fluid management, making it a compelling choice for both new suspended belt magnet installations and high-performance suspended electro magnet applications.

Choosing the correct cooling system is a strategic decision that impacts your bottom line for years. Align the technology with your plant’s reality to ensure your magnetic separation remains a reliable, efficient process cornerstone.
