In mineral processing development, a wide gap often exists between laboratory test results and industrial-scale production. How can small-batch separation data accurately predict full-scale process parameters? This is a core concern for mining companies and research institutions. The dry electromagnetic separator designed as a laboratory magnetic separator is the key equipment connecting laboratory research and industrial production. It uses dry separation as its core, meeting the precision and repeatability requirements of research institutes while providing reliable process data for production enterprises. This dry electromagnetic separator and laboratory magnetic separator is an essential tool from theory to practice.

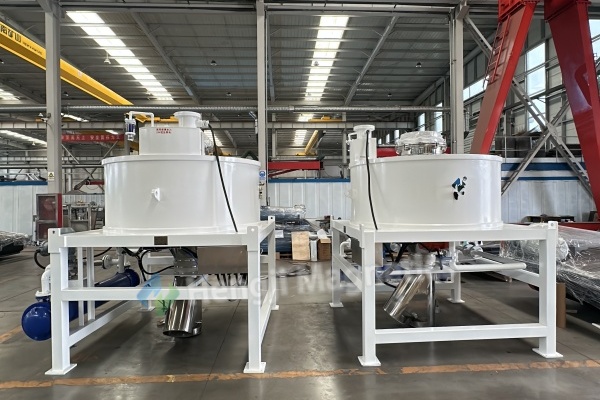

What Is a Dry Electromagnetic Separator and How Does It Work as a Laboratory Magnetic Separator?
The dry electromagnetic separator consists of an excitation coil, magnetic system assembly, feed system, separation system, and electrical control system. It uses electromagnetic principles to generate a controllable magnetic field. When feed material enters the separation zone, particles are acted upon by magnetic and mechanical forces. Minerals with different magnetic properties follow different paths, achieving effective separation.
Unlike permanent magnet equipment, the laboratory magnetic separator allows precise control of magnetic field strength by adjusting the excitation current. This enables flexible adjustment of separation parameters for different minerals, obtaining separation data under various conditions. The dry electromagnetic separator is computer-optimized with high-performance magnetic conductive materials, ensuring a uniform and stable magnetic field.
The magnetic system drum uses a unique magnetic circuit design. The drum outer surface is stainless steel—wear-resistant and corrosion-resistant—maintaining a clean surface in dry operation. During operation, the magnetic system drum remains stationary. The drum surface drags magnetic particles within the magnetic field range. Magnetic materials are attracted to the drum surface and rotate with it. Beyond the magnetic field zone, they detach by gravity and centrifugal force, completing separation. This laboratory magnetic separator design ensures reliable, repeatable results.

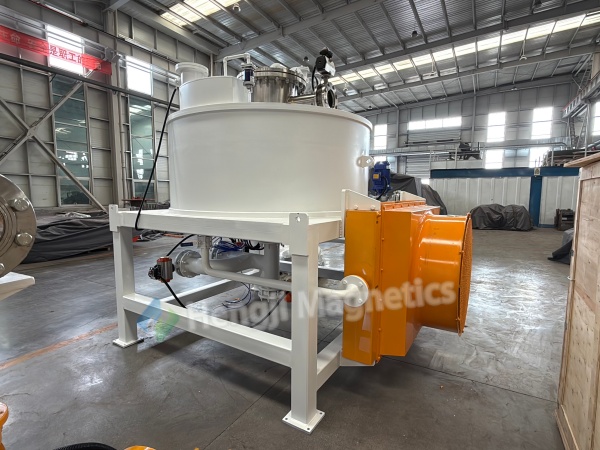

Key Advantages of the Dry Electromagnetic Separator in Laboratory Magnetic Separator Applications
The outstanding advantage of the dry electromagnetic separator lies in its flexible adaptability to different operating conditions. A mining research institute studying high-silicon iron ore separation needed to systematically investigate separation performance under different magnetic field strengths and feed particle sizes to determine optimal process parameters.
Using the laboratory magnetic separator for multiple comparative experiments, researchers accurately obtained the influence of different parameter combinations on concentrate grade and recovery. Based on this, they developed a targeted separation scheme. When the scheme was scaled up to industrial equipment for verification, the results matched laboratory data well—effectively shortening process development cycles and reducing trial-and-error costs.
The dry electromagnetic separator is also easy to operate. It can be installed directly on level ground with reliable grounding. Operators can check drum rotation direction through the viewing port and adjust feed speed and magnetic angle to suit different material testing needs. Magnetic and non-magnetic materials are collected from separate discharge ports for convenient product analysis and comparison, providing reliable data support for process design.
How the Laboratory Magnetic Separator Supports Mineral Processing Research
The laboratory magnetic separator provides precise, controllable magnetic field adjustment and stable dry separation performance. It is used in mineral processing research institutions, iron ore pre-concentration process validation, non-metallic mineral iron removal process development, and metallurgical slag resource recovery feasibility studies.
For example, a research team used the dry electromagnetic separator to study the separation of weakly magnetic minerals from quartz sand. By adjusting the excitation current and feed rate, they identified the optimal conditions for removing iron impurities. The data obtained from the laboratory magnetic separator was then used to design a pilot-scale test, which confirmed the expected performance. This demonstrates the value of the dry electromagnetic separator as a bridge between laboratory and production.

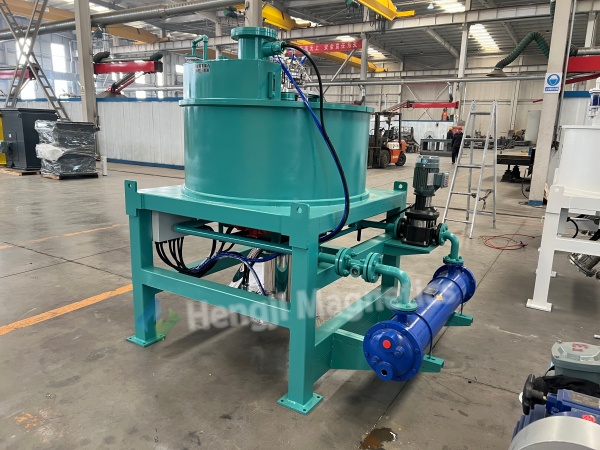

Why Choose a Dry Electromagnetic Separator as Your Laboratory Magnetic Separator?
The dry electromagnetic separator offers several key benefits:
-
Precise field control: Adjustable excitation current allows fine-tuning of magnetic field strength for different minerals.
-
Repeatable results: Stable magnetic field and consistent operation ensure reliable, reproducible data.
-
Flexible operation: Adjustable feed speed and magnetic angle adapt to various testing requirements.
-
Easy installation: Direct floor mounting with reliable grounding and simple connections.
-
Durable construction: Stainless steel drum surface resists wear and corrosion in dry processing.
-
Data reliability: Accurate separation data helps predict industrial-scale performance and reduce scale-up risks.
These features make the laboratory magnetic separator an indispensable tool for mineral processing R&D.
Conclusion: The Dry Electromagnetic Separator for Reliable Dry Separation Data
If you are struggling with repeated trial-and-error in determining production process parameters, or if laboratory data does not match production results, the dry electromagnetic separator as a laboratory magnetic separator is the reliable choice. It helps you bridge the gap from R&D to production with accurate, repeatable dry separation data.
From mineral processing research to iron ore pre-concentration validation, from non-metallic mineral iron removal to metallurgical slag recovery, the dry electromagnetic separator and laboratory magnetic separator provide reliable data support for process development. Choose the dry electromagnetic separator to make your dry separation data more reliable.
