In the family of magnetic separation equipment, when it comes to fine separation of medium‑intensity and weakly magnetic minerals, one machine stands out for its unique “induction” and “adjustable field” capabilities: the induced roll magnetic separator. Unlike conventional drum separators that rely on fixed permanent magnets, the induced roll magnetic separator uses electromagnetic excitation to generate an extremely high‑gradient, controllable field on a rotating induction roll. This enables precise magnetic particle separation for ores such as manganese, hematite, ilmenite, and for recovering weakly magnetic iron minerals from tailings. For any concentrator aiming to boost grade to new levels, understanding how this machine works is the first step toward the right equipment choice.

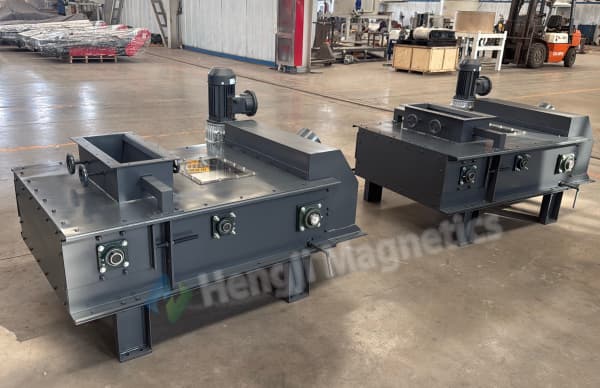

How Does an Induced Roll Magnetic Separator Solve the Weak‑Magnetic vs. High‑Recovery Dilemma?
The long‑standing problem in processing weakly magnetic minerals is insufficient field strength and gradient, causing fine magnetic particles to be lost to tailings. The induced roll magnetic separator was designed specifically to overcome this. Its core component is a roll made of high‑permeability magnetic steel. When DC current energizes the coil, the roll becomes magnetized, and its teeth or pole tips generate extremely high magnetic induction and gradient.
Material is fed as a thin, uniform layer over the rotating induction roll. Weakly magnetic particles are instantly captured by the strong magnetic force and held to the roll surface. Non‑magnetic particles are unaffected and fall into the tailings bin under gravity and centrifugal force. By adjusting the armature current, operators can precisely control the field strength, adapting to minerals with different specific susceptibilities. This allows magnetic particle separation with a sharp cut‑off, maximizing recovery while maintaining concentrate grade.

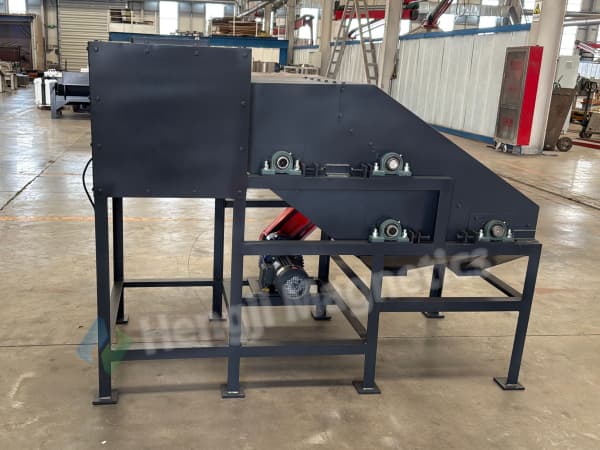

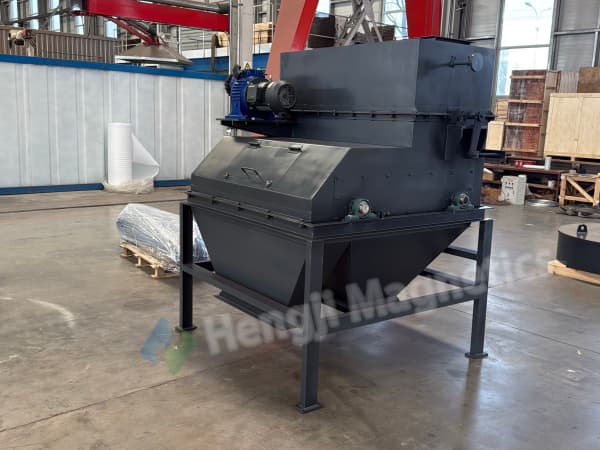

Balancing Throughput and Separation Precision – Long‑Term Stability
When selecting an induced roll magnetic separator, customers often ask: how can we increase feed rate without compromising separation precision? And will the equipment remain stable under heavy continuous duty?
To address throughput vs. precision, modern induced roll magnetic separator units carefully balance material flow dynamics and magnetic capture. Feed systems typically include a vibratory feeder or rotary valve to ensure a thin, uniform monolayer entering the separation zone, preventing particle overlap that causes carryover. Roll speed and separation zone length are precisely calculated to give sufficient “capture time,” so high capacity and high purity are no longer conflicting goals.
For long‑term stability, the induction coil uses high‑grade insulation and vacuum impregnation, combined with efficient internal air or forced oil cooling. This keeps coil temperature rise within safe limits, preventing field decay or insulation damage from overheating. The induction roll surface is coated with a wear‑resistant hard alloy or specially hardened, greatly reducing abrasion from material flow. As a result, the induced roll magnetic separator delivers reliable, continuous magnetic particle separation for years.

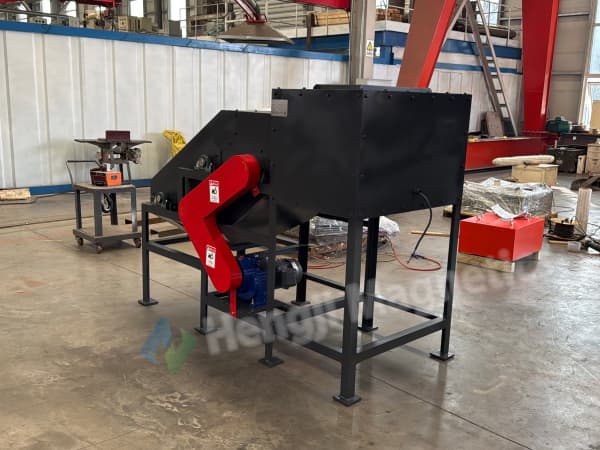

Beyond Ore Beneficiation – Wide Applications of Induced Roll Magnetic Separator
Thanks to its powerful field and efficient magnetic particle separation, the induced roll magnetic separator has found applications far beyond ferrous metal ores.
-
Refractories: Removing iron inclusions from fused alumina, magnesia to improve refractoriness and whiteness.
-
Glass & ceramic raw materials: Purifying quartz and feldspar by removing iron‑bearing minerals, significantly lowering Fe₂O₃ content.
-
Chemical industry: Recovering valuable metals from catalysts or removing ferrous impurities from feedstocks.
-
Non‑metallic mineral whitening: Iron removal from kaolin, talc, etc.
-
Coal‑based pyrite separation: Upgrading coal or recovering pyrite.
In all these fields, the induced roll magnetic separator turns previously difficult magnetic particle separation challenges into tangible economic benefits. Choosing a reliable induced roll magnetic separator means choosing a more efficient, worry‑free, and durable solution for your magnetic separation needs.
