Did you know that proper placement can improve your magnetic separator’s efficiency by over 50%? Many plants invest in powerful magnets but install them incorrectly. This guide reveals three crucial positioning secrets to maximize your magnetic separator for belt conveyor performance, ensuring your conveyor belt magnetic separator works at its absolute best.

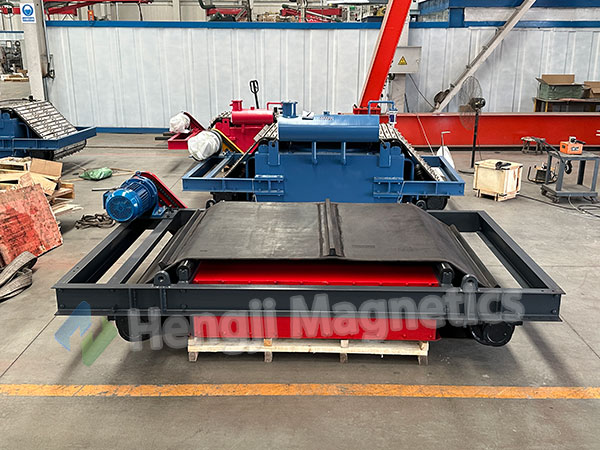

The Core Principle: Position Is Everything
A magnetic separator’s true effectiveness equals its magnetic strength multiplied by optimal placement. Even the strongest magnet will underperform if positioned incorrectly. Optimizing these three key areas will transform your conveyor belt magnetic separator from mediocre to exceptional, delivering dramatic results.

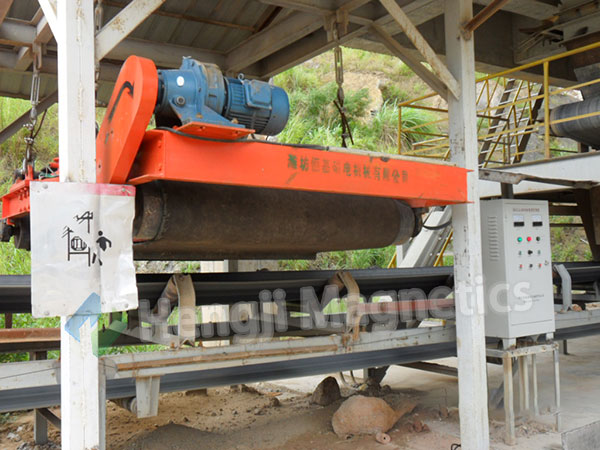

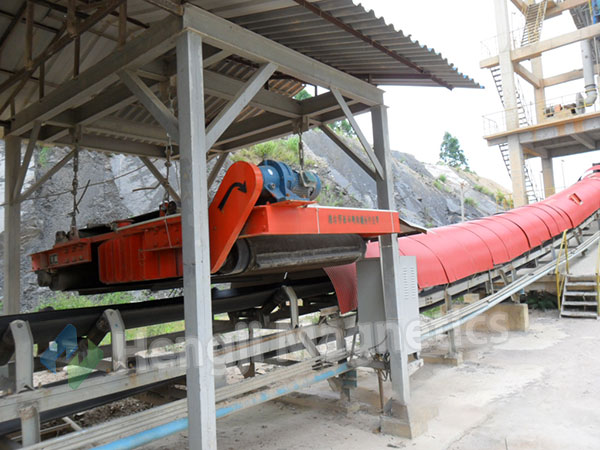

Key Decision 1: Head Pulley vs. Horizontal Placement
Your first critical choice is location. Should you install your magnetic separator for belt conveyor at the conveyor’s head or over a horizontal section? The answer depends entirely on what you need to remove from your material stream.
Optimal Choice: The Head Pulley Position
Installing your magnetic separator for belt conveyor above the head pulley is often ideal. Here, material trajectory creates a parabolic curtain as it leaves the pulley. This “free-fall” effect exposes ferrous contaminants, making them easy targets for your conveyor belt magnetic separator to capture efficiently.
Perfect for Heavy Contamination
The head pulley position excels at removing larger, heavier tramp iron like nuts, bolts, and tool fragments. It’s particularly effective for faster-moving belts where the material throw provides optimal exposure for your magnetic separator for belt conveyor.
Precision Head Pulley Positioning
For fast belts (>2 m/s), position the magnet slightly away from the pulley, allowing material to fully disperse. For slower belts, move it closer. A proven rule: align the magnet centerline roughly with the pulley’s center for your conveyor belt magnetic separator.
Alternative: Horizontal Over-Belt Placement
Sometimes, installing your magnetic separator for belt conveyor over a horizontal section is better. This setup provides deep magnetic penetration, perfect for capturing fine iron particles and deeply buried contaminants within thick material beds.
Ideal for Fine Iron Removal
Choose this position when your primary goal is removing microscopic ferrous contaminants. This makes the horizontal conveyor belt magnetic separator essential in food, plastic, and chemical industries where product purity is paramount.
Crucial Horizontal Installation Tip
Always install your magnetic separator for belt conveyor on a straight, stable section. Most importantly, use non-magnetic idlers (stainless steel or polymer) underneath. Standard steel idlers shield magnetic force, drastically reducing your conveyor belt magnetic separator efficiency.

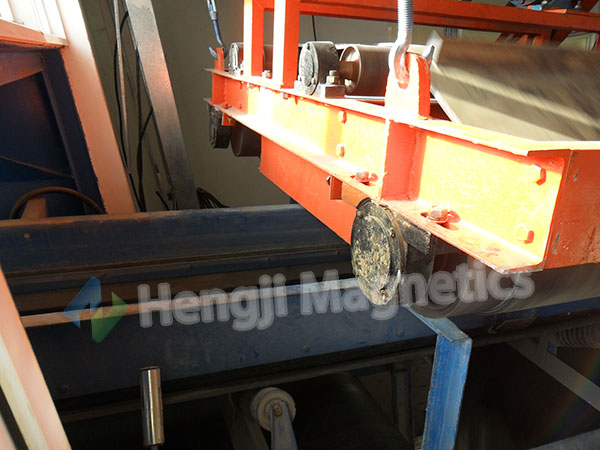

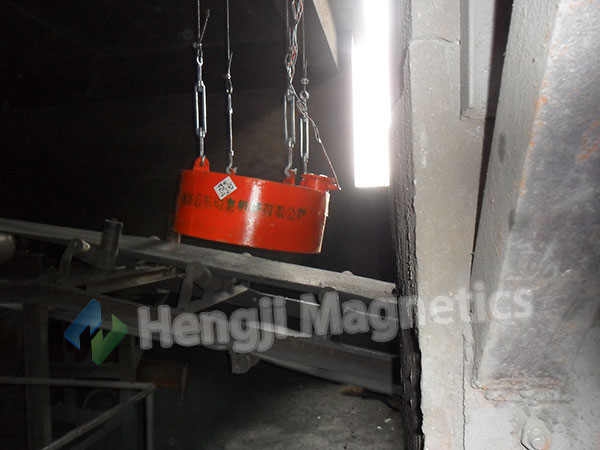

Key Decision 2: Suspension Height (H) Matters Most
Suspension Height (H) – the distance from the magnet face to the material burden depth – directly controls performance. This is the most critical variable for your magnetic separator for belt conveyor effectiveness.
The Inverse Square Law in Action
Magnetic strength diminishes with the square of the distance. Doubling the height can reduce your conveyor belt magnetic separator pulling force to just one-quarter. Every millimeter counts tremendously in real-world performance.
The Golden Rule of Height
Always minimize the suspension height while maintaining a safe clearance. Ensure your magnetic separator for belt conveyor never contacts the material or belt, typically maintaining a 50-100 mm safety gap during operation for optimal results.
Never Exceed Rated Height
Your conveyor belt magnetic separator has a maximum rated suspension height on its nameplate. Exceeding this value will render the unit nearly ineffective. Always confirm your installation stays well within this crucial specification limit.

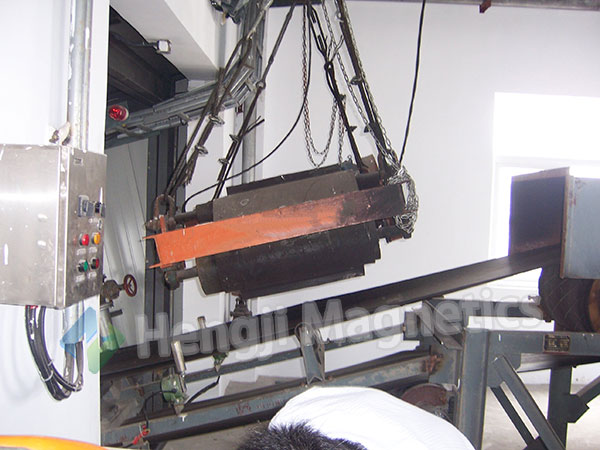

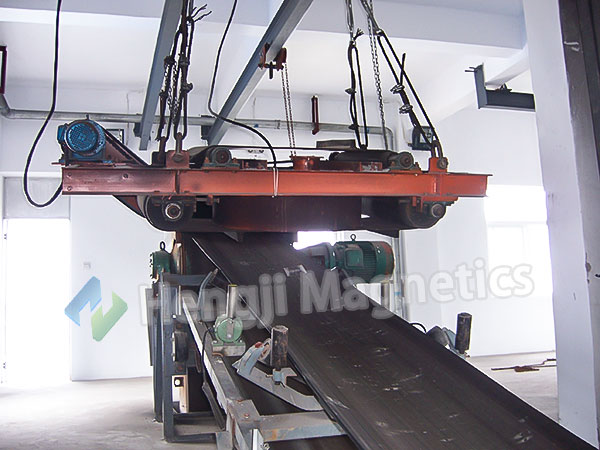

Key Decision 3: Perfect Alignment & Leveling
Ensure your magnetic separator’s field covers the entire material stream evenly. Proper alignment prevents dead zones where contaminants can escape unnoticed from your magnetic separator for belt conveyor.
Centerline Alignment Is Critical
The magnet’s center must align perfectly with the conveyor’s centerline. This ensures uniform magnetic coverage across the entire belt width, maximizing your conveyor belt magnetic separator contamination removal capability.
Maintain Perfect Leveling
Whether installed horizontally or inclined, keep the magnet housing perfectly level relative to the material stream. Avoid tilting, which creates weak spots and compromises your conveyor belt magnetic separator overall effectiveness and reliability.
The Trinity of Perfect Installation
Combine these three elements for perfect results:
-
Choose the right Position (Head vs. Horizontal)
-
Minimize the Suspension Height
-
Ensure perfect Alignment & Leveling
Master this trilogy to unlock your equipment’s full potential.
Your Step-by-Step Installation Process
First, select the optimal position for your goals. Next, carefully adjust the suspension height to the minimum safe distance. Finally, use precision tools to align and level your magnetic separator for belt conveyor perfectly. This systematic approach guarantees you’ll get the most from your conveyor belt magnetic separator investment.
Unlock Maximum Efficiency Today
Proper placement isn’t just detail—it’s everything. Transform your operation’s efficiency and product purity. Contact our experts to find the perfect magnetic separator for belt conveyor solution and ensure your conveyor belt magnetic separator is positioned for absolute maximum performance and return on investment.
