In cement, chemicals, refractories, building materials, and food industries, powder materials are mostly conveyed in enclosed pipelines. Iron contaminants in these pipelines—whether from equipment wear or raw materials—directly affect product purity and can cause downstream equipment failures. However, the enclosed nature of pipelines makes iron removal difficult. Traditional manual cleaning methods are inefficient and risk dust leakage and incomplete removal.

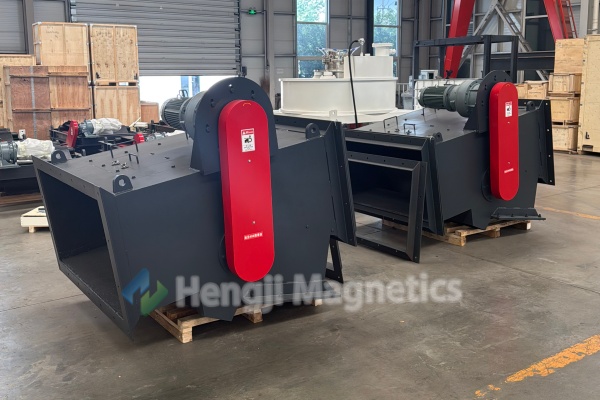

The pipeline magnetic separator with permanent magnetic separator technology was designed specifically for this challenge. It integrates a high-performance permanent magnetic system with pipeline conveying, installed in-line to automatically separate and discharge iron contaminants during normal material flow—without disrupting existing production layouts.
The Challenge of Iron Removal in Enclosed Pipelines and the Permanent Magnetic Separator Solution
In powder processing, pipelines are the primary conveying method. Material flows through sealed systems to prevent contamination and dust emissions. But when iron contaminants enter these pipelines—from equipment wear, raw material impurities, or upstream processing—they remain trapped in the enclosed system. Traditional removal methods require opening the pipeline, stopping production, and manual cleaning—all of which are time-consuming, hazardous, and often incomplete.
The permanent magnetic pipeline separator solves this by integrating separation directly into the pipeline. It works continuously during normal material flow, automatically capturing and discharging ferrous contaminants. There is no need to stop production or open the pipeline for cleaning. The pipeline magnetic separator ensures that iron removal happens silently and reliably in the background, protecting product purity and downstream equipment.

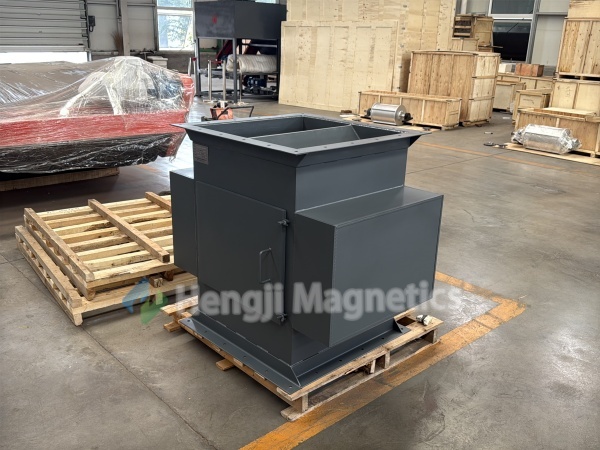

Customer Concern 1: Will the Permanent Magnetic Pipeline Separator Affect Existing Production Lines?
Many customers worry about installation complexity and whether production will need to stop. The permanent magnetic pipeline separator is designed for easy integration. It uses flanged connections and can be installed in-line by simply reserving space in the pipeline—external dimensions can be customized to site conditions.
A cement plant installed the pipeline magnetic separator in its existing pipeline and completed installation and commissioning in just half a day—without any production disruption.
Customer Concern 2: Does the Permanent Magnetic Pipeline Separator Require Manual Cleaning?
Traditional pipeline separators often require regular manual cleaning of accumulated iron—time-consuming and easy to forget. The pipeline magnetic separator uses a moving magnetic assembly. As material flows through, ferrous particles are attracted to the pipe floor. The moving magnetic assembly carries them to the separation point, where the magnetic field reverses—iron loses magnetic attraction and falls out by gravity through the iron discharge port.
The entire iron removal process is continuous and automatic. Once started, the permanent magnetic separator operates without supervision, separating and discharging iron contaminants on its own.

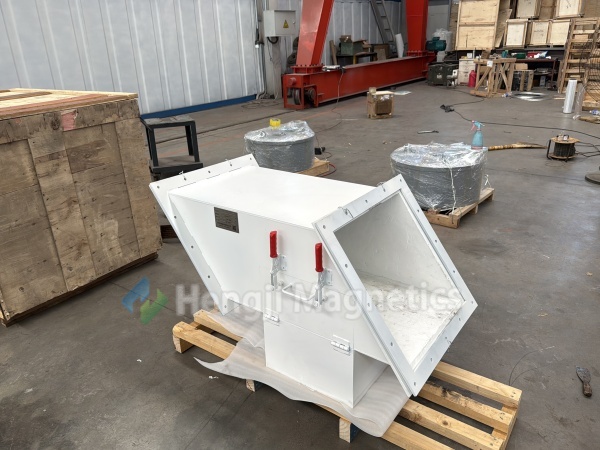

Beyond Iron Removal: Quality Assurance with the Pipeline Magnetic Separator
The pipeline magnetic separator uses high-temperature, high-strength Neodymium magnets with multiple moving magnetic assemblies to capture iron impurities. The magnetic assembly is sealed inside the housing with a drum-type design—fully isolated from material, minimizing wear and ensuring reliable operation. Liners are made of special wear-resistant materials for extended service life.
Case Study: A building materials company struggled with unstable iron content in cement powder, resulting in customer returns. After installing the permanent magnetic pipeline separator, iron contaminants were continuously and automatically removed, product quality was effectively controlled, and customer complaints dropped significantly. Over more than a year of operation, the equipment required no additional maintenance beyond regular dust cleaning—keeping operating costs under control.
Wide Application and Flexible Adaptation of the Permanent Magnetic Pipeline Separator
The pipeline magnetic separator is suitable for material temperatures up to 125°C, with pipeline inclination typically 50 to 60 degrees. It is widely used in cement, chemicals, plastics, coal, refractories, building materials, and food industries for iron removal from granular and small-block materials—particularly suitable where no conveyor belt is available and only a chute feed is provided.
With extensive experience in developing and manufacturing pipeline magnetic separator and permanent magnetic separator technology, Hengji Magnetics has earned recognition from customers across cement, building materials, and chemical industries for sound magnetic circuit design, stable operation, and automated iron removal. For companies seeking a reliable solution for powder iron removal in enclosed pipelines, the permanent magnetic pipeline separator is a solution worth serious consideration.
