In mineral processing and non-metallic ore industries, customers often face difficult questions. How can weakly magnetic minerals be recovered efficiently? How can iron impurities in non-metallic ores be removed thoroughly? Will fine particles cause clogging or carryover during magnetic separation? Can concentrate grade be stabilized? The plate magnetic separator and ore magnetic separator were developed to solve these separation challenges. This powerful magnetic separation equipment is designed for weakly magnetic ore processing and non-metallic mineral purification.

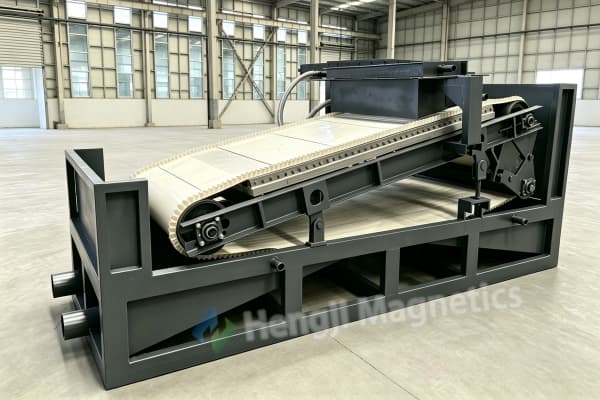

Why the Plate Magnetic Separator and Ore Magnetic Separator Are Essential
The plate magnetic separator is a high-intensity magnetic separation device built for difficult separation duties. It is especially effective when conventional equipment lacks sufficient magnetic force. The ore magnetic separator uses a computer-optimized magnetic circuit with an opposed-pole arrangement. This design maximizes the capture area and magnetic attraction within the working zone.
The magnetic core is made of high-strength rare earth Neodymium magnets. This gives the plate magnetic separator enough magnetic strength to capture weakly magnetic impurities. The magnetic system is fully sealed and oxidation-resistant. Even in harsh environments, the ore magnetic separator maintains stable magnetic output.

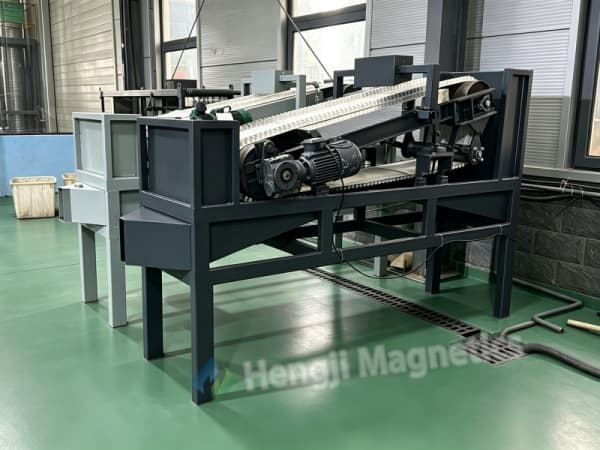

How the Plate Magnetic Separator and Ore Magnetic Separator Work Together
The plate magnetic separator consists of a support frame, plate magnetic system, feed agitation system, water system, iron discharge system, and adjustment system. Material flow and the discharge system move in opposite directions. This counter-current design makes separation more complete.
Magnetic particles are captured over a long distance and through multiple passes in the high-intensity magnetic field. The discharge system then carries them in reverse to the iron outlet. Non-magnetic material flows out by gravity. In this way, the ore magnetic separator achieves continuous separation with high efficiency.
The drive system of the plate magnetic separator uses a variable-frequency motor. This enables continuous automatic operation and reliable performance. The feed system includes an agitation structure. This ensures uniform material distribution when slurry enters the magnetic zone. The ore magnetic separator therefore delivers more stable separation results.
Key Features of the Plate Magnetic Separator and Ore Magnetic Separator
-
High magnetic strength: The plate magnetic separator uses high-strength rare earth Neodymium magnets. It effectively captures weakly magnetic impurities.
-
Counter-current design: Material flow and discharge direction are opposite. This reduces clogging and improves separation.
-
Automatic operation: The ore magnetic separator uses a variable-frequency drive for continuous automatic work. This saves labor and improves reliability.
-
Uniform feeding: The agitation system ensures even material distribution. This makes the plate magnetic separator more stable in operation.
-
Flexible water control: A single water inlet with separate valves controls each water point. Operators can adjust water volume as needed.
-
No secondary contamination: All material-contact parts are stainless steel or non-magnetic materials. This protects product purity.
-
Flexible structure: The ore magnetic separator is available in open or fully sealed designs. This suits different site conditions.

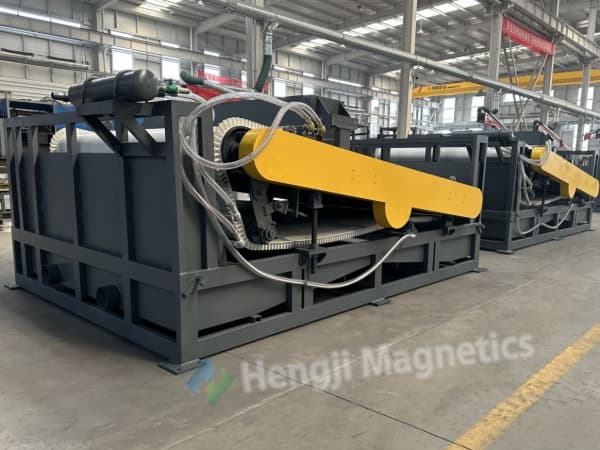

Case Study: Plate Magnetic Separator and Ore Magnetic Separator in Quartz Sand Purification
A quartz sand purification plant in Fujian faced high levels of weakly magnetic impurities. Traditional magnetic separators lacked sufficient magnetic strength. Iron removal could not meet customer requirements. Product whiteness was below standard, and market value was limited.
After introducing the plate magnetic separator, material was fed evenly into the magnetic zone through the agitation system. Under the strong magnetic field, weakly magnetic impurities were effectively captured and continuously discharged. The whiteness and purity of the purified sand improved significantly. The product met downstream customer quality requirements. Annual output value increased notably.
The plant manager said the ore magnetic separator ran stably and reliably. It became core equipment on the sand purification line. This case shows how the plate magnetic separator solves real separation problems in non-metallic ore processing.
Applications of the Plate Magnetic Separator and Ore Magnetic Separator
The plate magnetic separator is mainly used for weakly magnetic minerals below 5 mm and for iron removal from non-metallic minerals. Applications include mica powder, quartz sand, potassium feldspar, nepheline, fluorite, sillimanite, spodumene, and kaolin.
The ore magnetic separator is also used for manganese ore, weakly magnetic iron ore, pyrrhotite, roasted ore, ilmenite, hematite, limonite, and siderite. It can also remove iron from coal, non-metallic minerals, and building materials.
From non-metallic mineral purification to weakly magnetic ore separation, the plate magnetic separator and ore magnetic separator deliver reliable magnetic design, stable separation, and flexible operation. They are solving practical iron removal and weak magnetic separation problems for more and more companies.
Conclusion: Choose the Plate Magnetic Separator and Ore Magnetic Separator
If product purity is below standard or weakly magnetic mineral recovery is unsatisfactory, the plate magnetic separator and ore magnetic separator deserve serious consideration. They combine strong magnetic force, counter-current separation, automatic operation, and contamination-free construction.
The plate magnetic separator helps improve product whiteness and purity. The ore magnetic separator helps recover weakly magnetic minerals and remove iron impurities. Together, they provide a reliable solution for difficult separation duties.
For non-metallic ore purification and weakly magnetic mineral processing, choose the plate magnetic separator and ore magnetic separator. They make weak magnetic separation and non-metallic ore iron removal easier, more stable, and more profitable.
