Rare Earth Roll Magnetic Separator: Boosting Ore Grade and Beneficiation Efficiency in Mining

In mining and mineral processing, efficiently separating valuable magnetic minerals from waste rock and gangue is a core challenge. Traditional magnetic separators often struggle with insufficient field strength, low separation precision, or limited throughput, failing to meet modern demands for high output, high grade, and low energy consumption. The rare earth roll magnetic separator is designed to address these challenges. Using high-performance rare earth permanent magnets (such as Neodymium) as the magnetic source, and a unique roll-type magnetic circuit, it generates powerful field gradients and lifting forces. This enables precise separation of magnetic minerals—magnetite, pyrrhotite, ilmenite—from non-magnetic gangue like quartz and feldspar. By integrating advanced rare earth magnet technology with roll-type separation, this rare earth roll magnetic separator significantly improves pre-concentration and cleaning efficiency, making it a key asset for modern concentrators.

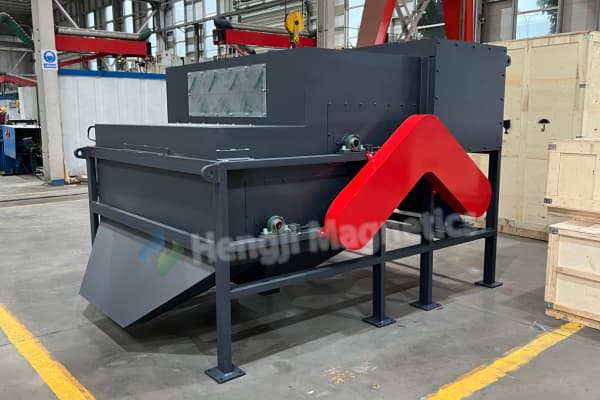

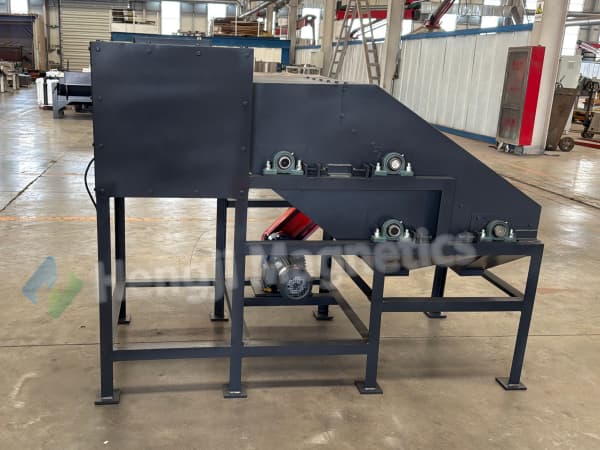

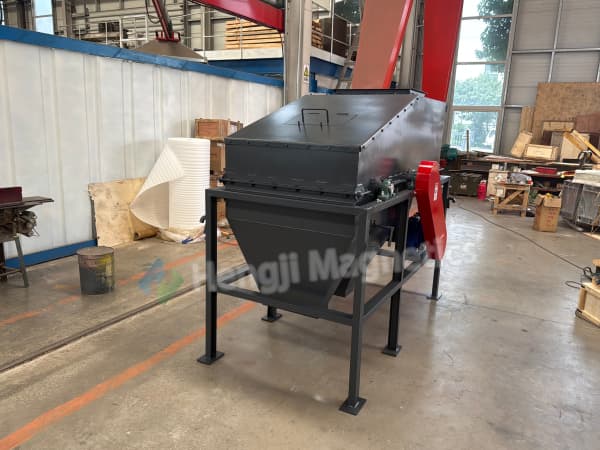

How the Rare Earth Roll Magnetic Separator Improves Beneficiation

The design of the rare earth roll magnetic separator focuses on the core concerns of mining customers, delivering separation efficiency and economic returns through advanced technology.

Enhancing Concentrate Grade and Reducing Tailings Loss

In processing magnetite, roasted ore, and other magnetic minerals, this rare earth roll magnetic separator uses high-grade Neodymium magnets to generate strong field strength and high lifting force on the roll surface. Magnetic mineral particles are firmly held to the roll, while non-magnetic gangue is ejected by gravity and centrifugal force—achieving efficient separation. For dry processing, a vibratory feeder ensures uniform material distribution across the magnetic zone, preventing uneven separation from material buildup. For coarse or lumpy ore, the magnetic separation in mining process is enhanced by the strong magnetic roll, which penetrates thick layers to capture deeply buried ferrous material—improving mill feed grade, reducing processing costs, and increasing production efficiency.

Throughput and Particle Size Adaptability

The rare earth roll magnetic separator allows flexible adjustment of roll speed to suit different particle sizes and throughput requirements. For coarser ore, lower roll speed increases retention time in the magnetic field, ensuring thorough capture. For fine powders, higher speed uses centrifugal force to achieve efficient separation. This adjustability enables the magnetic separation in mining process to handle variations in ore properties while maintaining stable separation performance.

Durability and Low Maintenance

Built for heavy-duty, continuous operation in harsh mining environments, the rare earth roll magnetic separator features a rugged design. The roll uses a computer-optimized magnetic circuit with a robust, maintenance-free magnetic system. Key components—bearings, gearboxes—are high-specification for long-term reliability under dust and vibration. The vibratory feeder uses elastic supports to avoid resonance and extend service life. Belt tracking issues are easily corrected with adjustable bearing bolts, minimizing downtime and ensuring continuous efficient operation of this rare earth roll magnetic separator.

Installation Flexibility and Space Adaptability

The rare earth roll magnetic separator has a compact footprint and can be installed directly on level ground with simple grounding—no complex foundations required. This flexibility allows easy integration into existing beneficiation lines, whether as a pre-concentration unit before crushers or as a cleaning stage in grinding-classification circuits.

Applications in Mining

The rare earth roll magnetic separator is widely used in mining applications:

• Pre-concentration of iron ores: Upgrading magnetite, hematite, and roasted ores before grinding.

• Removal of ferrous contaminants: Protecting crushers and mills from tramp iron.

• Upgrading industrial minerals: Removing magnetic impurities from non-metallic ores.

• Tailings reprocessing: Recovering magnetic values from waste streams.

Conclusion

The rare earth roll magnetic separator is an essential tool for magnetic separation in mining applications, delivering high-grade concentrate with low tailings loss. With powerful rare earth magnetic force, flexible speed control, rugged durability, and easy installation, it helps concentrators improve ore utilization and product value. For any mining operation seeking to optimize beneficiation efficiency and economic returns, a reliable rare earth roll magnetic separator is the strategic choice—maximizing value from every ton of ore.
