A common question arises in plants. Can a tunnel metal detector replace a magnetic separator? The answer is no. They are complementary partners, not substitutes. An integrated system using both is best. This system combines a tunnel metal detector and powerful conveyor belt magnets. Together, they provide ultimate protection for your process line and expensive equipment.
Core Distinction: The Eye and the Hand

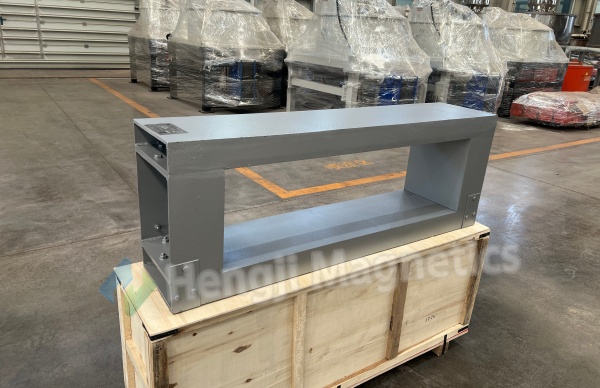

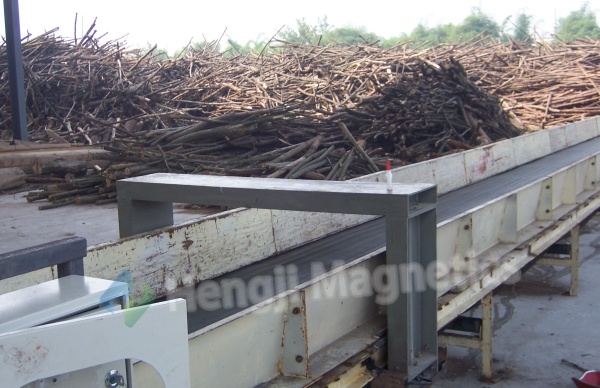

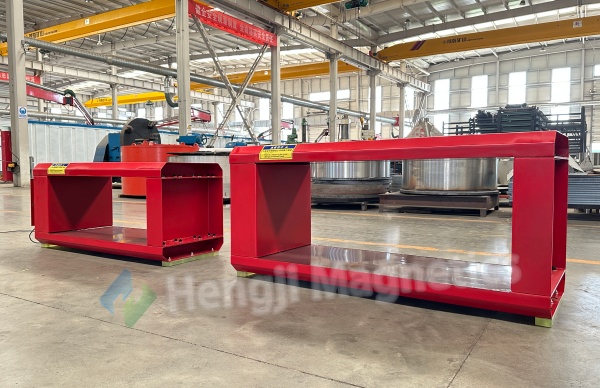

The Tunnel Metal Detector: Your System’s Alert Sensor
A tunnel metal detector is a sophisticated sensor. Its primary job is detection and alert. It can identify many metal contaminants. This includes both ferrous and non-ferrous metals like aluminum or copper. When metal passes through, it sends an immediate electrical signal. However, it cannot remove anything by itself.
The Value of Early Detection
Its value is as an early warning system. It prevents major downstream damage. Large metal pieces can destroy crushers or mills. The tunnel metal detector stops this before it happens. It alerts operators or triggers other equipment to act, protecting your valuable assets.

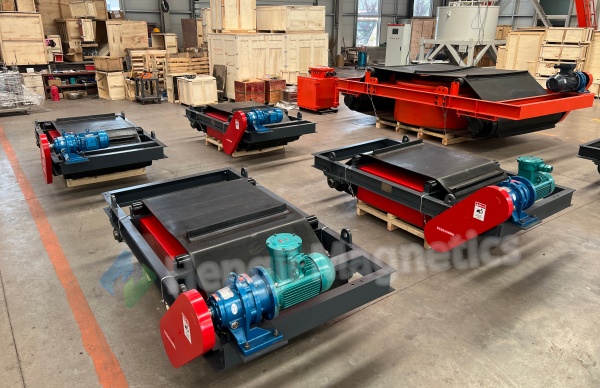

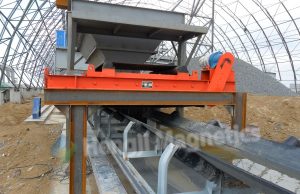

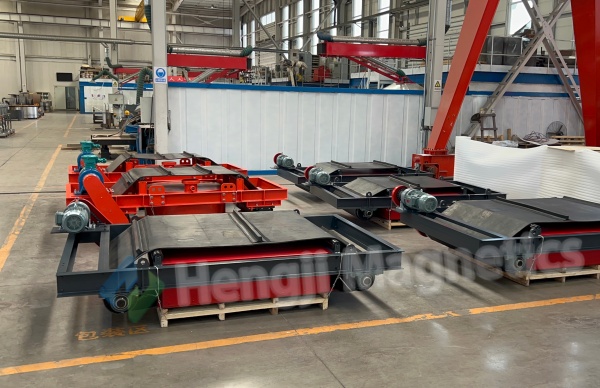

Conveyor Belt Magnets: Your System’s Physical Remover
In contrast, conveyor belt magnets are the action takers. Their sole function is physical removal. They use a powerful magnetic field for this task. This field pulls ferrous metal from the moving material stream. They do not detect metal on their own. They only act when they receive a command.
The Perfect Partnership in Action
Standard System Integration
The ideal setup has a specific order. The tunnel metal detector is installed upstream. The conveyor belt magnets unit is placed a short distance downstream. This strategic placement creates a seamless defense line. Material flows through the detector first, then past the magnetic separator.
The Automated Workflow Step-by-Step
The process is intelligent and automatic. The tunnel metal detector continuously scans all material. When it detects metal, it sends a signal immediately. This signal goes to a central control panel. The control panel instantly activates the conveyor belt magnets. The magnet lifts the contaminant and discharges it safely.
Key Benefits of the Combined System
Major Energy Savings
This partnership enables a crucial operating mode. It saves significant energy. In lines where metal is rare, running magnets constantly wastes power. With a tunnel metal detector, the system works on-demand. The conveyor belt magnets only activate when needed. This can drastically cut your annual energy bill.
Enhanced Reliability and Uptime
The system also provides built-in redundancy. This is a key reliability feature. If the tunnel metal detector needs service, the system can switch modes. The conveyor belt magnets can then run continuously. This ensures your line is always protected from ferrous metals, maximizing production uptime.
Precision and Avoidance of Interference
Optimal Installation Distance is Critical
Proper installation is key to performance. Distance matters a lot. The tunnel metal detector must be placed far enough from the magnets. This prevents magnetic field interference. The magnet’s strong field can disrupt the detector’s sensitive electronics. Following spacing guidelines ensures both devices work perfectly.
A Complete Protection Package
Beyond Simple Iron Removal
A tunnel metal detector expands your protection scope significantly. Conveyor belt magnets excel at removing ferrous (iron-based) metals. But they cannot catch stainless steel, aluminum, or copper. The detector catches all these. This provides comprehensive contamination control for higher-value or sensitive products.
The Bottom Line: A Smarter, More Efficient System
Viewing these tools as an either/or choice is a mistake. Together, they form a system greater than its parts. You gain intelligent detection from the tunnel metal detector. You get reliable physical removal from the conveyor belt magnets. You also achieve energy efficiency and valuable system redundancy.
Conclusion: Invest in Integrated Intelligence
For modern, efficient processing lines, integration is key. It is the optimal solution. Pairing a sensitive tunnel metal detector with robust conveyor belt magnets creates a smart system. This automated defense protects your capital equipment. It ensures consistent product purity. It also minimizes your long-term operational costs.
