Profile

The RCYDII Self-Cleaning Permanent Magnetic Separator delivers automated ferrous metal extraction in space-constrained installations. Its compact frame design (30% shorter than standard models) enables deployment in low-clearance areas like underground mines, retrofit facilities, and modular plants where conventional separators won't fit.

Advanced magnetic performance features a focused neodymium circuit capturing bolts, tool fragments, and reinforcement bars from bulk materials on conveyors as narrow as 650mm. The integrated self-cleaning system activates automatically during operation – a motorized belt ejects captured contaminants without manual intervention.

Engineered for continuous duty with IP65-rated construction and stainless-steel components. Maintains reliable protection for crushers and screens downstream while operating in confined, high-dust environments.

Leave Message Inquiry Online
Space-Optimized Design

The RCYDII Self-Cleaning Permanent Magnetic Separator features:

  • Shortened frame structure for restricted spaces
  • Compact footprint without performance compromise
  • Flexible installation in challenging layouts
Core Components

This RCYDII Self-Cleaning Permanent Magnetic Separator integrates:

  • High-performance permanent magnetic core
  • Continuous discharge belt system
  • Geared reduction motor
  • Heavy-duty support frame
  • Durable discharge rollers
Continuous Operation Performance

The RCYDII Self-Cleaning Permanent Magnetic Separator provides:

  • Uninterrupted ferrous removal during material flow
  • Automatic discharge of captured contaminants
  • 24/7 operational capability
Advanced Belt System
  • Self-tracking mechanism prevents misalignment
  • Low-noise operation profile
  • Minimal vibration transmission
  • Reduced maintenance requirements
Optimized Magnetic Circuit

The RCYDII Self-Cleaning Permanent Magnetic Separator incorporates:

  • Computer-simulated magnetic field design
  • Dual-pole magnetic structure
  • Consistent performance in harsh environments
  • Long-term reliability assurance
Specialized Versions
  • Explosion-proof certified model
  • Armored construction variant
Technical Specifications
  • Operation Principle: Permanent magnetic separation
  • Drive System: Geared reduction motor
  • Design Standard: JB/T 8711-2012 compliant
  • Installation: Integrated with conveyor systems
Operational Benefits
  • Continuous protection without manual intervention
  • Space-efficient installation
  • Reduced maintenance costs
  • Reliable performance in demanding conditions
  • Flexible configuration options
Product Parameters

Model

Applicable Belt Width (mm)

Rated Lifting Height (mm)

Magnetic Field Intensity (mT)

Max. Material Thickness (≤mm)

Max. Driving Power (≤kw)

Max. Applicable Belt Speed (≤m/s)

Weight (kg)

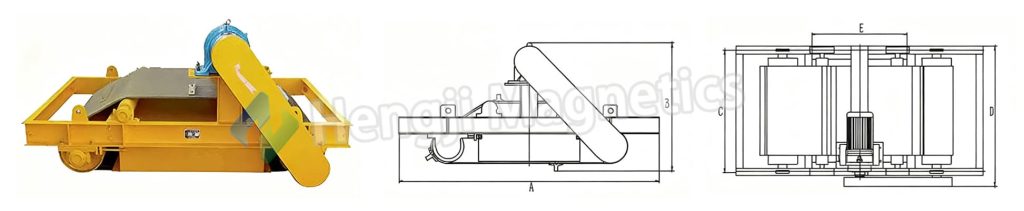

Overall Dimensions (mm)

















A

B

C

D

E

RCYDII-5

500

150

70

80

1.5



780

1550

850

755

877

600

RCYDII-6

600

175

70

125

1.5



920

1700

895

835

955

690

RCYDII-6.5

650

200

70

150

1.5



1060

1750

895

888

1027

700

RCYDII-8

800

250

70

200

2.2



1320

1940

941

1088

1227

800

RCYDII-10

1000

300

70

250

3

4.5m/s

2080

2170

1050

1335

1476

1100

RCYDII-12

1200

350

70

300

4



2950

2450

1120

1515

1664

1190

RCYDII-14

1400

400

70

350

4



3821

2740

1140

1755

1930

1500

RCYDII-16

1600

450

70

400

5.5



5200

2850

1215

1815

1961

1750

RCYDII-18

1800

500

70

450

5.5



8150

3380

1290

2025

2167

1980
Applications

This equipment is primarily designed to remove ferrous metal contaminants (e.g., tramp iron, bolts, nails, tools) from bulk non-magnetic materials.

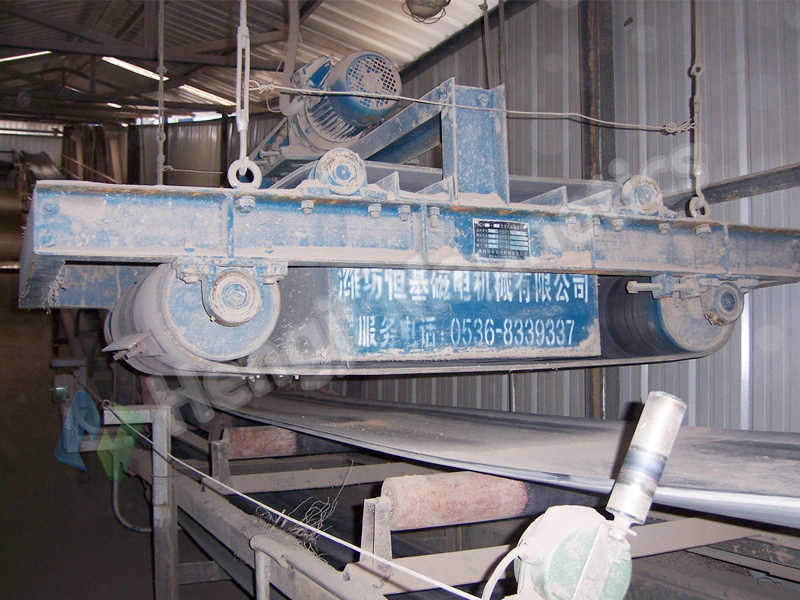

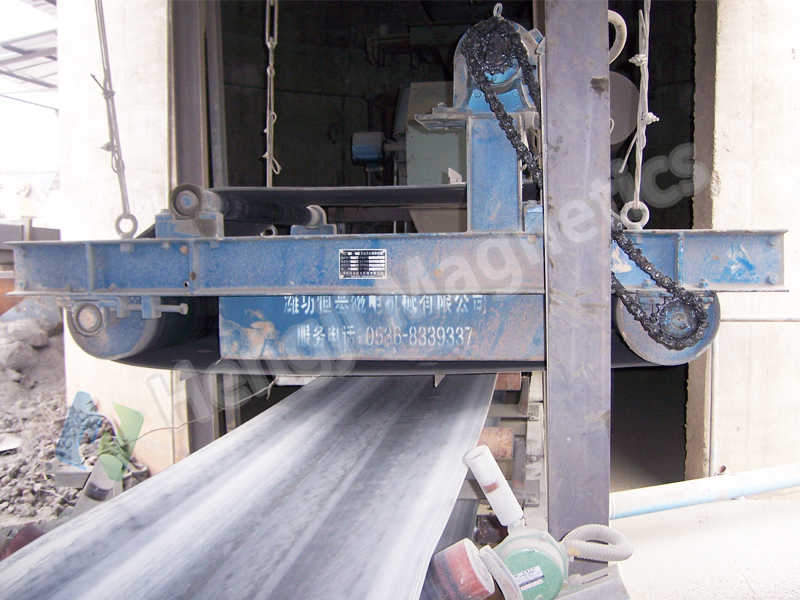

Typical Installation:
Mounted at the head or mid-section of belt conveyors, where its self-cleaning discharge belt automatically removes captured ferrous metals. This critical function:

Protects downstream equipment (crushers, grinders) from damage

Prevents costly conveyor belt tears

Industries Served:
Power Generation ∙ Mining ∙ Metallurgy ∙ Building Materials ∙ Coal Washing ∙ Chemical Processing
