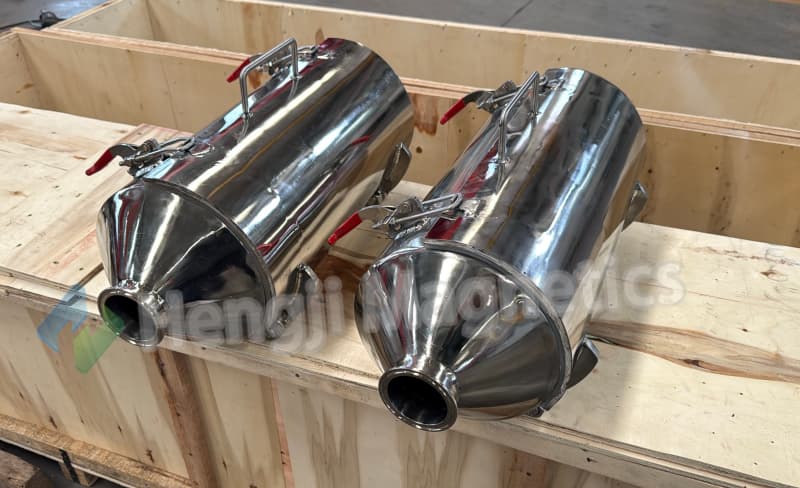

RCYZ Bullet Pipeline Magnetic Separator

The RCYZ Bullet Pipeline Magnetic Separator incorporates:

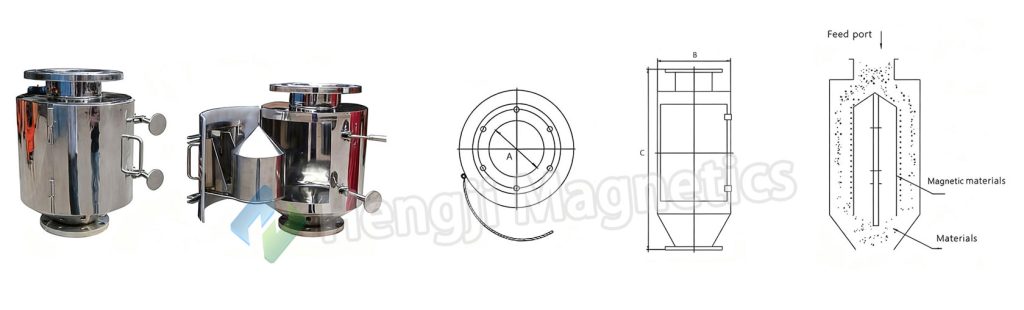

• Ring-shaped NdFeB magnetic circuit
• Conical geometry for optimized flux concentration
• 12,500+ Gauss surface field strength
• Engineered for maximum particle contact

1. High-Efficiency Capture: Conical design directs material through peak field intensity
2. Zero Energy Consumption: Permanent magnet technology
3. Space-Optimized Profile: Compact vertical installation
4. Robust Construction: Industrial-grade materials
5. Maintenance-Free Core: No moving parts

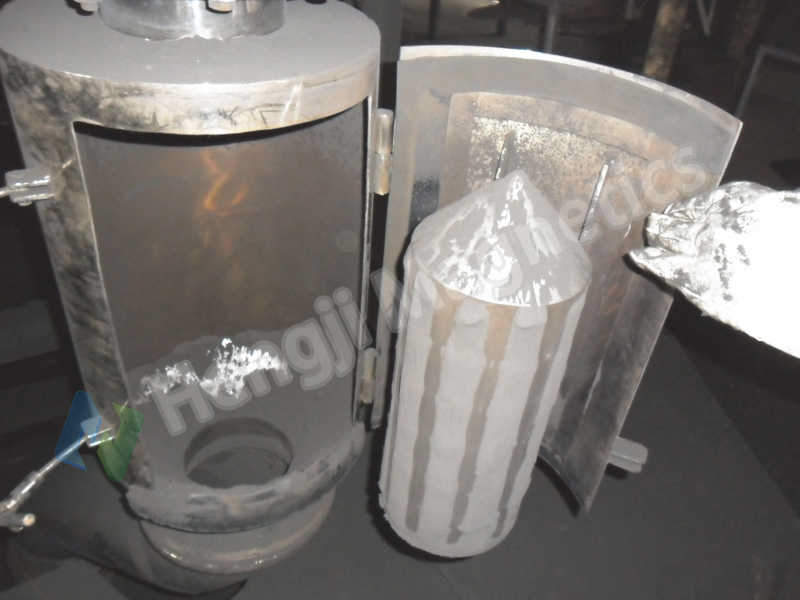

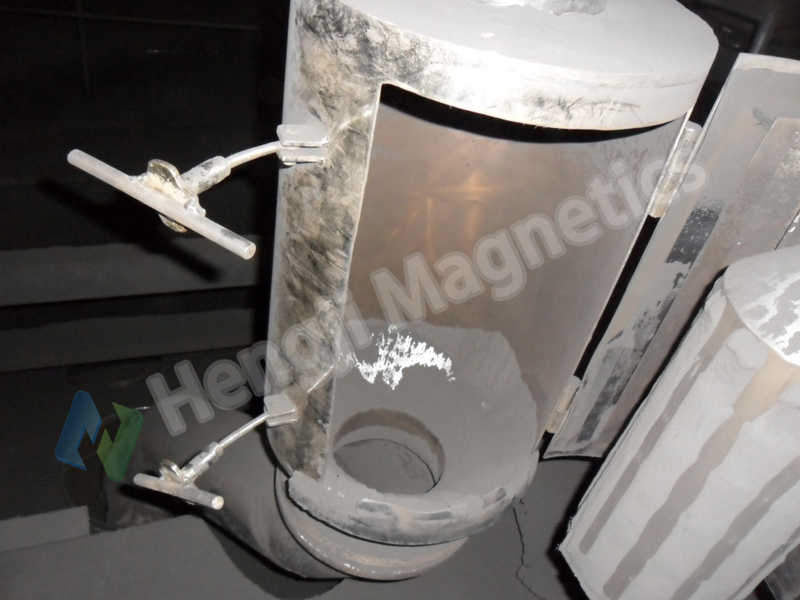

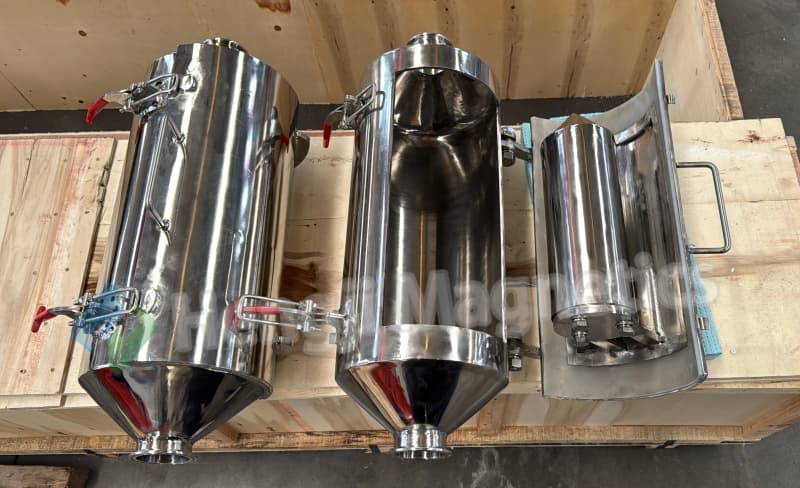

• Pivoting access door with secure latch
• Tool-free contaminant removal
• <90-second cleaning cycle
• No process interruption
• Full material containment

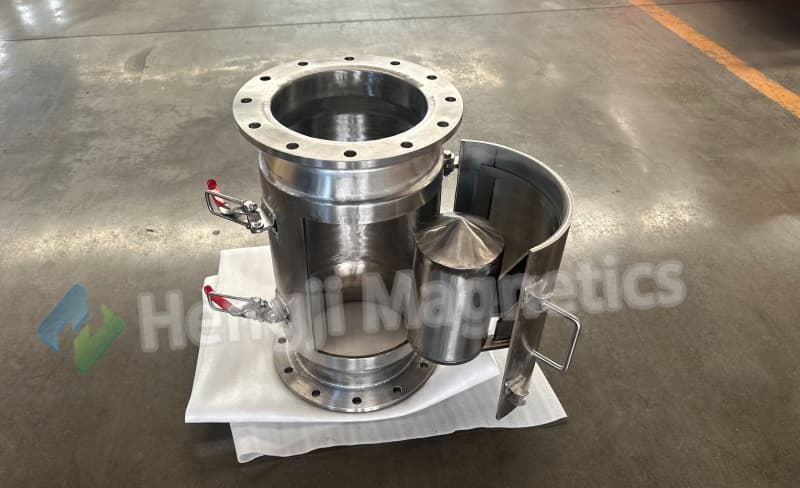

• Flanged connection to process lines
• True vertical installation orientation
• Minimal pressure drop
• Seamless retrofit capability

• Material Compatibility: Powders & granules (50μm-5mm)
• Flow Capacity: 5-100 m³/h
• Operating Temp: -20°C to 120°C
• Connection Standards: DIN/ANSI flanges
• Surface Finish: 0.8μm Ra (food-grade option)

• Eliminates ferrous contamination in sensitive products
• Prevents equipment damage in grinding systems
• Maintains product certification compliance
• Reduces maintenance costs by 65%
• Ensures continuous processing without energy costs

The RCYZ Bullet Pipeline Magnetic Separator excels in:

• Food grade powder purification
• Flour milling operations
• Ceramic raw material processing
• Chemical powder streams
• Cement additive protection
• Construction material production
• Quartz sand refinement
