In ceramic production, iron, rust, and metal oxides mixed into clay and powder materials are a persistent risk to product whiteness and firing quality. After ball milling and drying, ceramic raw materials become powdery particles. If iron removal is incomplete, fired tiles and sanitaryware develop black spots and discoloration—directly lowering product grade. Customers repeatedly ask: Is the magnetic field strong enough in dry conditions to capture fine iron powder? Can iron removal be continuous and automatic without frequent shutdowns for cleaning? Will the coil overheat and burn out during long operation? The ceramic dry electromagnetic separator was developed to answer these exact needs. This article explains how this integrated device delivers strong, continuous iron removal for ceramic powders.
What Is a Ceramic Dry Electromagnetic Separator?
A ceramic dry electromagnetic separator is a new type of vibratory iron removal equipment designed specifically for ceramic powder processing. It combines the functions of a ceramic magnetic separator and a dry electromagnetic separator into one integrated device. It is used for iron removal from powdery and granular materials in ceramics. The machine uses a dedicated silicon rectifier control cabinet to supply DC excitation power. When energized, the steel magnetic conductive plates become magnetized. Powder material is vibrated by a vibration motor and enters the magnetic plates from top to bottom. Iron and metal powders and their oxides in the material are attracted to the steel magnetic plates. This achieves iron removal. The ceramic dry electromagnetic separator provides high magnetic flux density in the working chamber. It operates stably, is easy to operate, and has an attractive appearance. It is designed specifically for iron removal from ceramic powders.

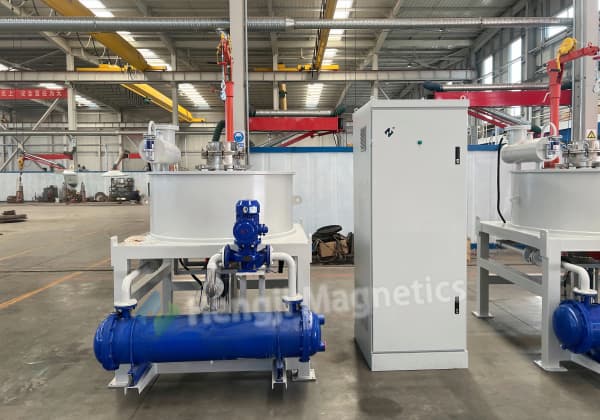

How the Ceramic Dry Electromagnetic Separator Achieves Strong Magnetic Force
The ceramic dry electromagnetic separator delivers outstanding magnetic field strength. The working chamber achieves magnetic flux density up to 1.2 T. This effectively captures fine iron particles and oxides in ceramic powder. It provides sufficient magnetic force to improve ceramic raw material whiteness. As a ceramic dry electromagnetic separator, it offers strong magnetic force for demanding ceramic applications. The device also features stepless adjustment of vibration frequency and amplitude. Users can control the vibration motor frequency via a variable frequency drive. They can adjust the amplitude to achieve optimal iron removal and throughput. This adapts to the large batch variations in ceramic powder production. The ceramic dry electromagnetic separator provides flexible operation for different materials.
Key Features of the Ceramic Dry Electromagnetic Separator
The ceramic dry electromagnetic separator offers several key features that address customer concerns.
-
High magnetic flux density: The ceramic dry electromagnetic separator achieves up to 1.2 T in the working chamber. This captures fine iron particles and oxides effectively.
-
Stepless vibration adjustment: The ceramic dry electromagnetic separator allows stepless adjustment of vibration frequency and amplitude. Users can optimize settings for different ceramic powders.
-
Continuous automatic operation: The ceramic dry electromagnetic separator runs continuously and automatically. No manual cleaning shutdowns are required.
-
Complete protection system: The ceramic dry electromagnetic separator includes over-temperature alarm, over-current alarm, oil temperature alarm, and cooling oil temperature alarm. These protect the electromagnetic coil.
-
Efficient oil cooling: The ceramic dry electromagnetic separator uses a tube-and-shell cooler to reduce oil temperature. Cooling water must be softened to prevent scaling in the cooler.
-
Reliable long-term operation: The ceramic dry electromagnetic separator ensures safe and stable operation for long continuous production runs.
These features make the ceramic dry electromagnetic separator reliable for demanding ceramic powder processing.

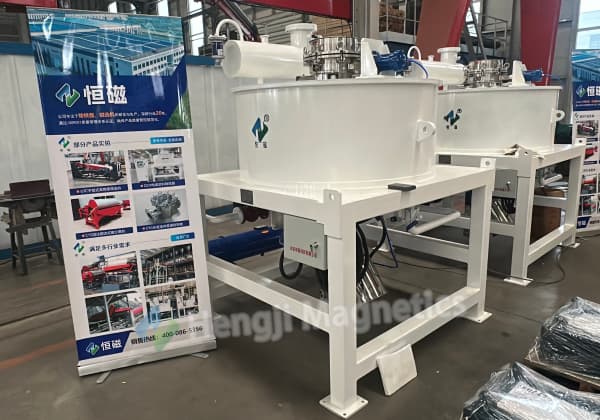

Customer Case: Ceramic Dry Electromagnetic Separator in Action
A building ceramic manufacturer faced high iron content in tile body powder. After firing, product surfaces frequently showed black spots and discoloration. The first-grade product rate remained low, and customer complaints were constant. After introducing the ceramic dry electromagnetic separator, powder was fed evenly through the vibration motor into the magnetic plates. Iron and metal oxides were strongly attracted to the steel magnetic plates. After iron removal, powder whiteness improved significantly. The black spot problem on tile surfaces was effectively solved. The first-grade product rate increased substantially. The equipment ran continuously and automatically without dedicated supervision. With over-temperature and over-current alarm protection, long-term production was stable and reliable. Overall economic benefits improved markedly. This case demonstrates the practical value of the ceramic dry electromagnetic separator in real production.
Applications of the Ceramic Dry Electromagnetic Separator
The ceramic dry electromagnetic separator is widely used for iron removal from ceramic raw material powders. It is also suitable for iron removal from powdery and granular materials in chemicals, food, plastics, and lithium battery materials. With high magnetic flux density, stepless vibration adjustment, complete temperature control protection, and continuous automatic operation, the ceramic dry electromagnetic separator is solving real challenges in ceramic powder iron removal. It addresses insufficient iron removal and substandard product whiteness. The ceramic dry electromagnetic separator makes the quality foundation of ceramic production more solid.
Conclusion: Choose the Ceramic Dry Electromagnetic Separator
If your ceramic powder processing suffers from incomplete iron removal or substandard whiteness, the ceramic dry electromagnetic separator deserves serious consideration. It delivers high magnetic force, continuous automatic operation, and reliable protection against coil overheating. From tiles to sanitaryware, from chemicals to lithium battery materials, the ceramic dry electromagnetic separator is the equipment of choice for dry powder iron removal. Contact us today for a free application review and find the right ceramic dry electromagnetic separator for your production line.
