High Intensity Roll Magnetic Separator: Continuous Dry Powder Iron Removal

In industries such as abrasives, refractories, non-metallic mineral processing, carbon black, grain, feed, and chemical raw materials, ferrous contamination in dry powders is a persistent risk to product quality and downstream equipment. Customers repeatedly ask: Can strong magnetic force effectively remove iron from powders? Can iron removal be continuous and automatic without manual cleaning? Can roll speed be adjusted according to throughput? Will the magnetic field decay over time? The high intensity roll magnetic separator was developed to address these exact needs. By integrating ultra-strong magnetic roll technology with a continuous roll-type separation structure, this high intensity magnetic separator delivers reliable dry powder iron removal. It is also a highly effective roll magnetic separator for continuous automatic operation.

What Is a High Intensity Roll Magnetic Separator?

A high intensity roll magnetic separator is a magnetic separation device that continuously and automatically removes iron from dry powders. It features automatic feeding and stepless roll speed control (using an MB series stepless speed controller with a range of 40–200 rpm). The roll magnetic separator is compact, energy-efficient, and easy to install and operate. Its magnetic roll uses a computer-simulated, unique magnetic circuit with high-performance Neodymium magnets as the magnetic source. The roll surface delivers strong field strength, high lifting force, and high iron removal efficiency. The high intensity magnetic separator is maintenance-free, energy-saving, safe, and reliable. The vibratory feeder uses elastic supports for long service life and effective resonance avoidance, meeting the feeding requirements of different particle sizes.

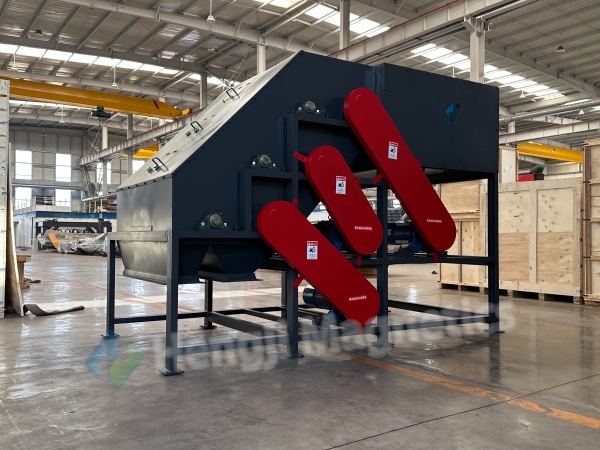

How the High Intensity Magnetic Separator Works

The high intensity magnetic separator works on differences in magnetic susceptibility between minerals. When feed material enters the separation zone, particles are acted upon by magnetic and mechanical forces—gravity, centrifugal force. Minerals with different magnetic properties follow different paths, achieving separation. The roll magnetic separator uses a front roll with an ultra-strong full-magnetic structure and a rear drive roll. Material is fed evenly onto the conveyor belt by the vibratory feeder. The belt is driven by the motor through the rear active roll.

When material reaches the front magnetic roll zone, ferrous particles are firmly attracted by the ultra-strong magnetic roll. As the roll rotates, they are carried to the lower rear section. A discharge scraper on the belt forcibly pushes them out of the magnetic zone. The ferrous material loses magnetic attraction and falls naturally by gravity through the iron discharge outlet. Non-magnetic material, not attracted by the magnetic roll, is thrown by inertia to the next conveyor section and discharged through the product outlet. This achieves separation of material from ferrous contaminants. The high intensity roll magnetic separator therefore delivers reliable, continuous dry separation.

Key Features of the High Intensity Roll Magnetic Separator

The high intensity roll magnetic separator offers several key advantages:

• Ultra-strong magnetic force: The high intensity magnetic separator uses a full-magnetic roll structure and high-performance Neodymium magnets. It captures fine iron particles effectively.

• Continuous automatic operation: The roll magnetic separator provides automatic feeding, separation, and discharge—no manual cleaning shutdowns required.

• Stepless speed control: Roll speed is adjustable from 40 to 200 rpm. This adapts to different throughput requirements.

• Effective vibration feeding: Elastic vibratory supports ensure long service life, resonance avoidance, and consistent feed for different particle sizes.

• Easy installation: The high intensity roll magnetic separator installs directly on level ground with reliable grounding. Installation is convenient.

• Simple maintenance: Clear discharge port layout—rear port for iron, front port for non-magnetic material. Belt tracking is easily corrected.

• Energy efficient: No external power is required to generate the magnetic field—saving energy.

• No demagnetization: The magnetic system maintains full strength over years of use.

These features make the high intensity roll magnetic separator a dependable choice for dry powder processing.

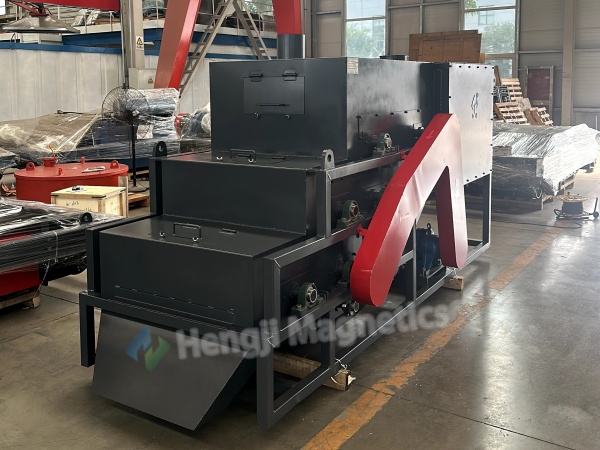

Customer Case: High Intensity Roll Magnetic Separator in Refractory Production

A refractory material manufacturer faced high iron content in dry powders, affecting product quality. Traditional equipment lacked sufficient magnetic force and could not continuously discharge iron automatically. Iron removal performance was unsatisfactory. After introducing the high intensity roll magnetic separator, powder was fed evenly through the vibratory feeder onto the conveyor belt. In the ultra-strong magnetic roll zone, ferrous particles were firmly attracted and carried to the rear section. A discharge scraper forcibly pushed them out of the magnetic zone. They fell naturally by gravity through the iron discharge outlet. Non-magnetic material was thrown by inertia to the next belt and discharged through the product outlet. After the upgrade, iron content in the product dropped significantly. The roll magnetic separator allowed stepless speed adjustment to suit different throughput requirements. No external power was needed to generate the magnetic field—operating energy consumption was low. Overall economic benefits improved markedly. This case demonstrates the practical value of the high intensity magnetic separator in real production.

Applications of the High Intensity Roll Magnetic Separator

The high intensity roll magnetic separator is widely used for iron removal from dry powders in abrasives, refractories, non-metallic mineral processing, carbon black, grain, feed, and chemical raw materials. The high intensity magnetic separator and roll magnetic separator deliver ultra-strong magnetic force, continuous automatic iron removal, and stepless speed control. They are solving real dry separation challenges where conventional equipment lacks sufficient field strength or discharge convenience. The high intensity roll magnetic separator improves dry powder quality and reduces maintenance costs.

Conclusion: Choose the High Intensity Roll Magnetic Separator

If your dry powder processing suffers from insufficient magnetic force or inconvenient iron discharge, the high intensity roll magnetic separator deserves serious consideration. It delivers ultra-strong magnetic force, continuous automatic operation, and flexible speed adjustment. From refractories to non-metallic minerals, from abrasives to chemical powders, the high intensity magnetic separator and roll magnetic separator are the equipment of choice for efficient dry iron removal. Contact us today for a free application review and find the right high intensity roll magnetic separator for your production line.
