In mineral processing, the recovery efficiency of magnetic minerals from wet slurry directly determines concentrate grade and economic returns. For wet magnetic separation of ferromagnetic materials such as magnetite, pyrrhotite, roasted ore, and ilmenite, as well as heavy media recovery, customers consistently ask: Is the recovery rate high enough? Does the concentrate grade meet requirements? Is the equipment prone to clogging and frequent maintenance? Are energy and operating costs controllable? The permanent wet magnetic separator with rotary drum magnetic separator technology was designed to address these exact concerns.

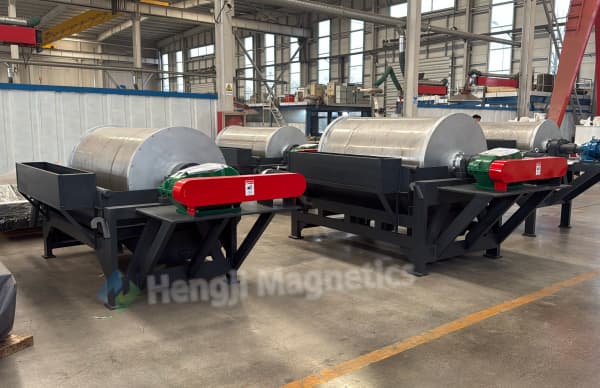

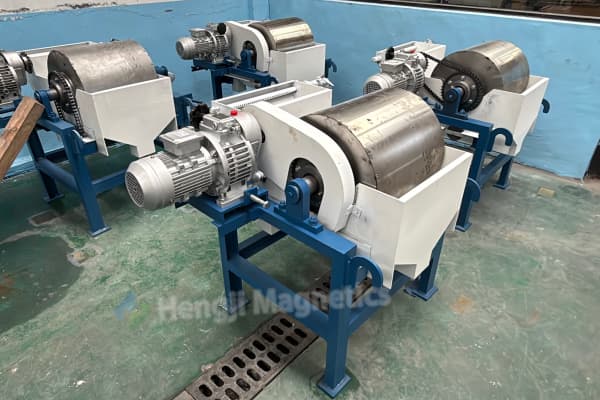

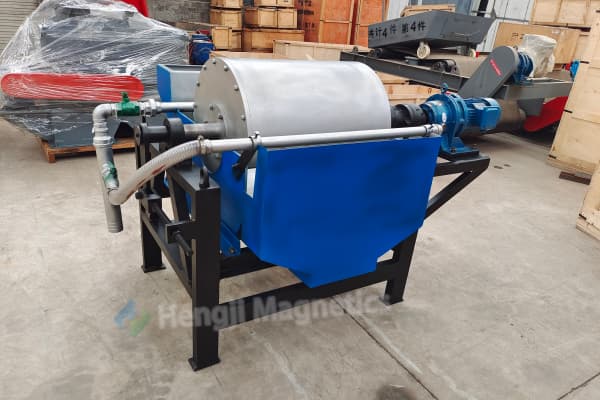

How Does the Permanent Wet Rotary Drum Magnetic Separator Work?
The permanent wet rotary drum magnetic separator is suitable for wet magnetic separation of ferromagnetic materials such as magnetite, pyrrhotite, roasted ore, and ilmenite. It is also used for iron removal from coal, non-metallic minerals, building materials, and magnetite heavy media recovery in coal preparation. The unit consists of a permanent magnetic drum, adjustment mechanism, tank, gearbox, motor, feed box, concentrate box, and frame—with a compact structure and smooth operation.
The rotary drum magnetic separator uses a rare earth composite magnetic system, bonded with high-strength adhesive and epoxy-potted, with the surface reinforced by stainless steel strapping to prevent loosening. End seals with gaskets and sealant prevent water ingress. The drum rubber lining is directly vulcanized rather than bonded, using high-wear rubber to withstand long-term continuous operation.
Magnetic Circuit Design and Performance
The drum uses high-performance permanent magnets in a composite magnetic system, delivering high field strength, deep penetration, and no demagnetization over years of use. The magnetic system is stable, maintenance-free, with long service life and no power consumption for field generation—saving energy.
The tank is specially designed to resist clogging and material loss, with a semi-counter-current flow pattern that ensures thorough slurry circulation for effective separation of magnetic from non-magnetic materials. The feed box is designed to generate proper slurry flow, significantly improving magnetic mineral recovery.
Customer Case Study: Iron Ore Concentrator
An iron ore concentrator processing magnetite struggled with fluctuating concentrate grade, high magnetic iron losses in tailings, and unsatisfactory recovery rates. After introducing the permanent wet rotary drum magnetic separator, slurry was fully dispersed and separated in the tank. Magnetic minerals were effectively attracted to the permanent magnetic drum surface, carried out of the magnetic field as the drum rotated, and rinsed into the concentrate box. Concentrate grade stabilized and improved, magnetic iron content in tailings dropped significantly, and the plant increased concentrate production by thousands of tons annually—delivering substantial economic benefits.
Drive System and Adjustability
The drive system uses a cycloidal gearmotor with sprocket, chain, and drive shaft connection for smooth, reliable drum rotation. A magnetic angle adjustment mechanism allows easy adjustment of the magnetic angle to suit different operating conditions. For heavy media circuits, specially designed dual-drum configurations can reprocess tailings for further recovery—increasing recovery, reducing tailings losses, and simplifying the beneficiation process.
Wide Application, Proven Performance
From iron ore beneficiation to heavy media recovery, from non-metallic mineral iron removal to building material purification, the permanent wet magnetic separator with rotary drum magnetic separator technology is helping more concentrators solve wet slurry separation challenges. If mineral recovery rates, concentrate grade fluctuations, or high maintenance costs are a concern, the permanent wet rotary drum magnetic separator deserves serious consideration.
Conclusion
The permanent wet rotary drum magnetic separator delivers high recovery rates, stable concentrate grade, and low maintenance—making it the reliable choice for wet slurry separation in mineral processing. With its durable construction, energy-efficient operation, and proven performance, this equipment helps concentrators maximize resource recovery and improve economic returns.
