In mining, power generation, metallurgy, building materials, coal preparation, and chemicals, ferrous contamination in bulk materials is a persistent hazard. Tramp iron can damage crushers and grinding mills, tear conveyor belts, and cause unplanned shutdowns—resulting in significant economic losses. Customers consistently ask: Is the iron removal effective enough? Can it handle large and deeply buried tramp iron? Is it reliable and easy to maintain? Are energy and operating costs high? The overband magnetic separator with electromagnetic separator technology was designed to address these exact concerns.

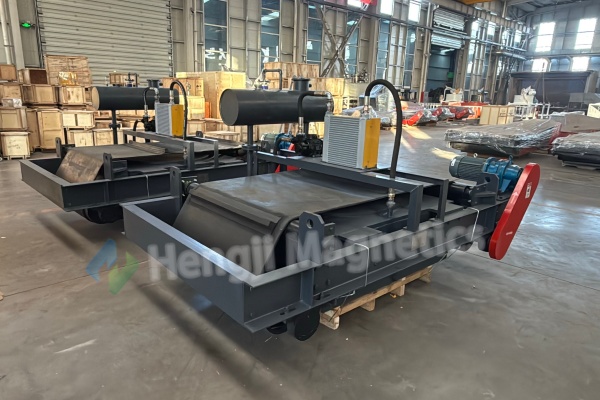

How Does the Overband Electromagnetic Separator Work?
When energized, the overband electromagnetic separator generates a powerful magnetic field. As bulk material passes beneath the unit on the conveyor, ferrous contaminants are instantly lifted by the magnetic force and attracted to the bottom working face. Simultaneously, a discharge belt driven by a geared motor continuously carries captured iron away and ejects it into a collection bin—achieving automatic, continuous iron removal. The entire process requires no shutdowns and no manual intervention—truly “material flows, iron is removed.”

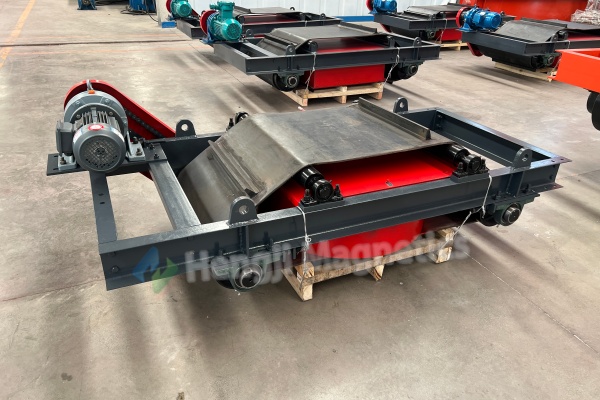

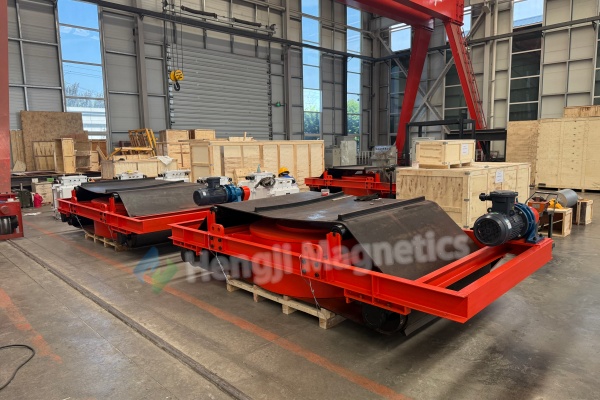

Customer Concerns and How the Overband Electromagnetic Separator Addresses Them
Concern 1: Deep-Buried Tramp Iron Cannot Be Removed – Iron Removal Effectiveness Falls Short
Many customers report that conventional permanent magnets lack sufficient field strength and penetration depth. When material layers are slightly thick, tramp iron at the bottom cannot be attracted—allowing ferrous contaminants to reach downstream processes and causing equipment damage.
The overband electromagnetic separator features a computer-optimized magnetic circuit. When energized, the excitation coil generates a powerful electromagnetic field with deep penetration and strong lifting force—ensuring maximum attraction at the working distance. It effectively removes ferrous materials ranging from 0.1 kg to 40 kg from non-magnetic materials. The crowned drive drum provides automatic belt tracking, preventing misalignment during high-speed operation—ensuring consistent, reliable iron removal.
Case Study: A cement plant’s conveyor carried material with heavy tramp iron content. The existing permanent magnet could only remove surface iron, causing frequent crusher jams and high monthly maintenance costs. After switching to the overband electromagnetic separator, deep-buried tramp iron was effectively removed even with the same material layer thickness. Crusher failure rates dropped by over 90%, saving more than $40,000 annually in maintenance costs.
Concern 2: High Energy Consumption – Long-Term Operating Costs Are a Concern
Electromagnetic equipment has a reputation as an “electricity hog,” making many customers hesitant about energy costs.
The overband electromagnetic separator features a fully sealed structure with high-insulation transformer oil as the cooling medium. When the excitation coil heats up, heat is transferred to the oil, circulated by a pump through a condenser, and forced-cooled by a fan—delivering high heat dissipation efficiency and low temperature rise. The entire unit is optimally designed for low power consumption and low noise—saving over 30% energy compared to conventional separators, with clear long-term operating cost advantages.
Case Study: A large coal preparation plant operated two old separators at full load, with monthly electricity costs exceeding $7,000. After switching to the **overband electromagnetic separator**, power consumption dropped by nearly one-third. A metal detector interlock system was also installed—the unit stays in standby mode when no iron is detected, only activating excitation and the discharge belt upon detecting tramp iron. This further reduced wasteful energy consumption, saving over $20,000 annually in electricity costs.
Concern 3: High Failure Rates and Frequent Maintenance – Disrupting Production Continuity
Iron removal equipment is typically installed above conveyors in dusty, high-vibration environments. Ordinary equipment suffers from bearing damage, belt misalignment, and coil burnout—frequent maintenance and replacement are a constant headache.
The overband electromagnetic separator is designed for harsh conditions. The excitation coil uses specialized electromagnetic wire with Class F insulation. The magnetic system is vacuum-encapsulated, completely isolating windings from air—effectively resisting moisture, dust, and corrosion. The drive uses a high-performance cycloidal geared motor, with fully sealed cast steel bearing housings preventing dust ingress. A rubber scraper at the discharge end—integrated with the endless belt—prevents captured iron from re-entering the magnetic field and avoids damage from external metal scrapers. The unit delivers long-term continuous trouble-free operation—truly “install and forget.”
Case Study: An iron ore concentrator processed material with high, irregular tramp iron content. The previous separator required belt replacement every two months and bearing replacement twice a year due to dust ingress. After switching to the overband electromagnetic separator, the sealed structure effectively blocked dust—belt life extended to over one year, and the fully sealed bearing housings have operated for two years without failure. Total maintenance costs dropped by 70%.
Concern 4: Large Equipment Size – Limited Installation Space at Site
Some customers have compact production lines with limited space for large iron removal equipment.
The overband electromagnetic separator offers flexible suspension installation—inclined or horizontal mounting—suitable for conveyor head, mid-section, above picking stations, or above vibrating screens. The compact, lightweight design has low space requirements, with multiple suspension options for excellent site adaptability.
Conclusion
From cement raw material purification to coal preparation iron removal and iron ore concentrator reliable operation, the overband magnetic separator with electromagnetic separator technology—with its powerful electromagnetic field penetration, significant low energy consumption, reliable sealed construction, and flexible installation—is helping more customers solve bulk material iron removal challenges. If iron removal effectiveness, high energy costs, frequent maintenance, or short equipment life is a concern, the overband electromagnetic separator deserves serious consideration.
