In wet beneficiation of ferromagnetic materials like magnetite and ilmenite, the recovery rate of magnetic minerals in slurry directly determines the economic performance of the processing line. Many concentrators face a common challenge: strongly magnetic minerals in slurry are not fully recovered, leading to significant concentrate loss in tailings. This not only reduces concentrate grade but also wastes valuable resources. Complex processing flows, frequent equipment maintenance, and high tailings treatment costs further drive the urgent need for more efficient and reliable magnetic separation solutions.
The permanent wet magnetic separator designed as a rotary drum magnetic separator was created to address these challenges. It integrates a permanent magnetic system with a rotating drum mechanism, specifically designed for continuous separation and recovery of magnetic minerals from slurry. It is widely used in wet magnetic separation of ferromagnetic materials such as magnetite, pyrrhotite, roasted ore, and ilmenite, as well as in iron removal from coal, non-metallic minerals, building materials, and magnetite heavy media recovery in coal preparation.
How the Permanent Wet Rotary Drum Magnetic Separator Works

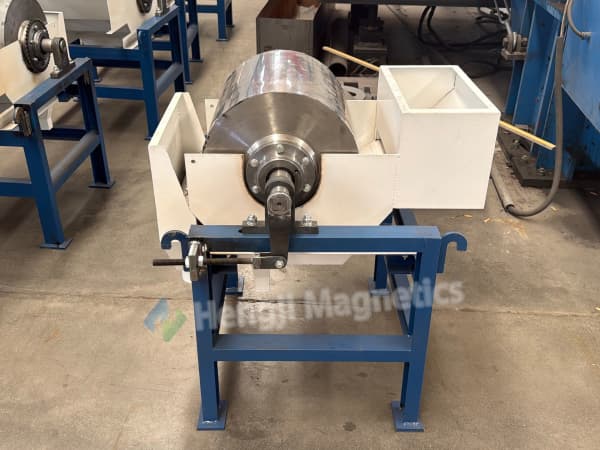

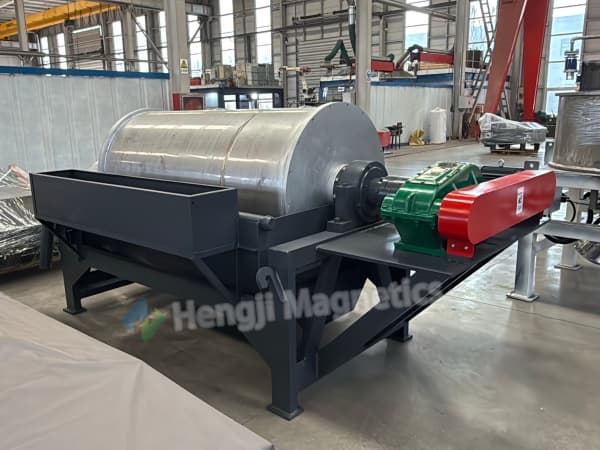

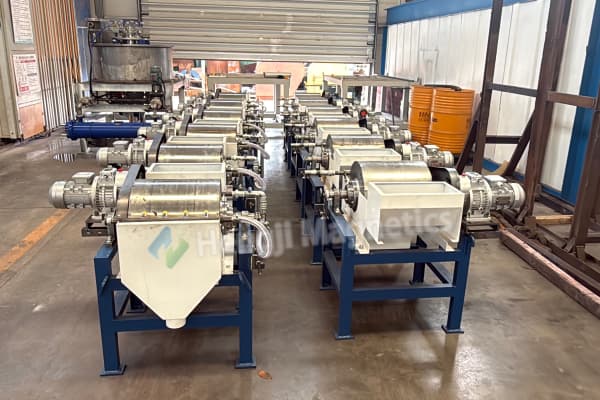

The rotary drum magnetic separator consists of a permanent magnetic drum, adjustment mechanism, tank, gearbox, motor, feed box, concentrate box, and frame. Its core component—the permanent magnetic drum—is made up of the drum shell, permanent magnetic system, end covers, shaft, bearing housings, and bearings. The drum is rolled from stainless steel plate, with the gap between the drum and magnetic system controlled within 4mm for a compact, efficient magnetic circuit.
During operation, slurry enters the feed box through a flange, is diluted by the feed pipe, and is washed to the lower part of the permanent magnetic drum via a water spray pipe. The permanent wet magnetic separator drum rotates continuously, driven by the gearbox. Magnetic minerals in the slurry are attracted to the drum surface by the permanent magnetic system, carried out of the magnetic field, and rinsed into the concentrate box by wash water. Non-magnetic minerals flow out through the tailings outlet—achieving continuous separation of concentrate from tailings.
Three Core Customer Concerns – Addressed
In actual beneficiation operations, customers typically focus on three questions: Is the recovery rate high enough? Is the equipment stable? Is maintenance convenient? The permanent wet rotary drum magnetic separator provides targeted solutions for each.
Recovery Rate – The rotary drum magnetic separator uses a rare earth composite magnetic system, reinforced with stainless steel strapping and epoxy-potted to prevent loosening or demagnetization. End seals with gaskets and sealant prevent water ingress, ensuring high field strength and deep penetration for effective separation. The specially designed tank resists plugging and material loss, with smooth slurry flow for efficient separation of magnetic from non-magnetic minerals.
Operational Stability – The drum rubber lining is directly vulcanized rather than bonded, using a 4mm thick high-wear rubber layer with a bond strength of 3.5 MPa and a service life of 2-3 years—eliminating the risk of rubber layer detachment. The feed box is designed to generate proper slurry flow, significantly improving magnetic mineral recovery.
Maintenance Convenience – Bearings at both ends of the permanent magnetic drum require monthly greasing, and the gearbox requires oil changes and cleaning every six months—simple, straightforward maintenance. The permanent wet magnetic separator features a compact structure with high throughput capacity and easy operation.
Configuration Flexibility for Different Applications
The rotary drum magnetic separator offers different tank types to suit various applications: semi-counter-current tanks for high concentrate grade requirements, counter-current tanks for high recovery rate requirements, and concurrent tanks for roughing operations. Drive options include left-hand and right-hand configurations, with a flexible magnetic angle adjustment mechanism to suit different slurry characteristics.
In heavy media circuits, a second permanent wet magnetic separator can be installed in series to reprocess tailings from the first unit—further improving recovery, increasing concentrate grade, reducing tailings losses, simplifying the process flow, lowering costs, and improving economic returns.
Conclusion
The permanent wet magnetic separator with rotary drum magnetic separator design is a reliable, high-efficiency solution for slurry magnetic separation. It delivers high recovery rates, stable operation, and simple maintenance—helping concentrators maximize resource utilization and reduce operating costs. For any operation seeking to improve beneficiation efficiency and economic performance, the permanent wet rotary drum magnetic separator is the equipment to trust.
