From mining and crushing to conveying and grinding, every stage of iron ore processing is vulnerable to ferrous contamination. Removing these tramp metals efficiently to protect downstream equipment and improve concentrate grade is a persistent challenge for mining operations. Electro suspended magnets have become indispensable in the magnetic separation of iron ore, helping an increasing number of operations solve these production problems.
Customer Pain Points
Iron ore processors commonly face the following challenges:
Tramp iron causing equipment damage. Raw iron ore frequently contains ferrous contaminants such as excavator teeth, bolts, and steel bars. Once these enter crushers or grinding mills, they can cause equipment damage or even complete production line shutdowns. One mine operator reported single maintenance costs exceeding tens of thousands of dollars from tramp iron entering a crusher—plus the production losses from downtime.
Insufficient iron removal, fluctuating concentrate grade. Traditional magnetic separators often lack sufficient magnetic strength and penetration depth for thick ore burdens on conveyors, leaving ferrous impurities behind. This compromises subsequent magnetic separation of iron ore stages and causes concentrate grade instability.
High energy consumption. Iron ore processing lines often run continuously. The electricity costs of high-consumption equipment are a significant burden.
Poor reliability in harsh conditions. Mines are dusty and humid. Equipment frequently fails, disrupting production.
The Critical Role of Electro Suspended Magnets in Iron Ore Processing

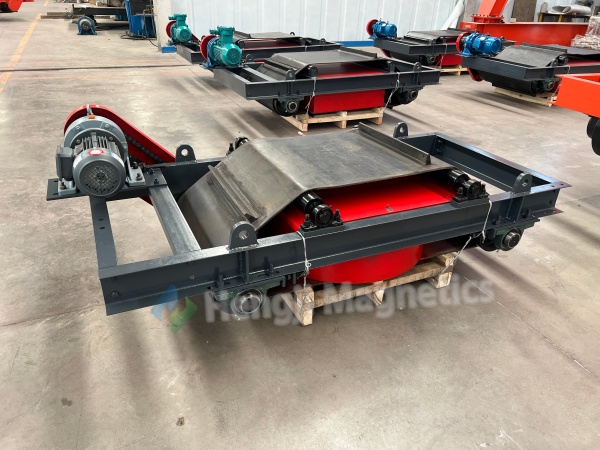

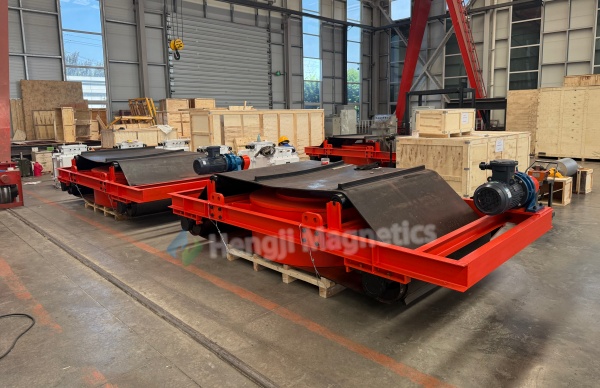

Electro suspended magnets are typically installed above the head or middle section of iron ore conveyors. Their primary task is to remove ferrous contaminants before ore reaches downstream crushers and grinding mills. This protects equipment from impact damage and provides cleaner feed for subsequent magnetic separation of iron ore stages, improving concentrate grade.
The magnetic circuit is computer-optimized for deep penetration and strong magnetic force, ensuring maximum lifting power at the working distance. They can remove ferrous material ranging from 0.1 to 35 kg from non-magnetic materials. Advanced manufacturing techniques reduce weight and improve heat dissipation, while electrical pure iron enhances magnetic flux conduction and overall field stability.
In operation, the process is clear and efficient: as iron ore passes beneath the electro suspended magnet on the conveyor belt, the strong electromagnetic field instantly attracts ferrous contaminants to the bottom working face, while non-magnetic material continues normally. For self-cleaning models, a high-performance geared motor drives an automatic discharge belt that ejects captured tramp iron, preventing conveyor belt damage. The crowned drive drum design provides automatic belt tracking, preventing misalignment during high-speed operation.
How Electro Suspended Magnets Solve Real Problems

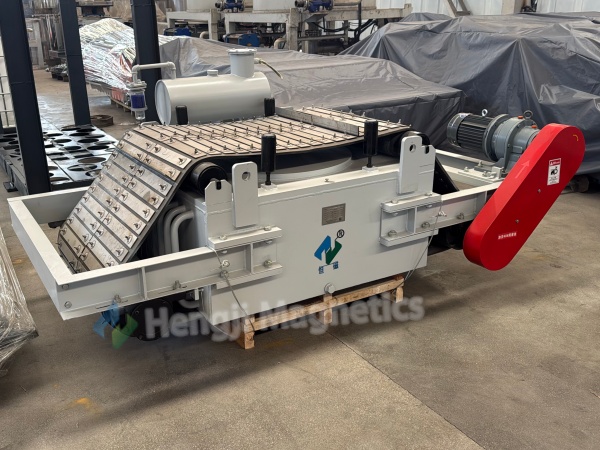

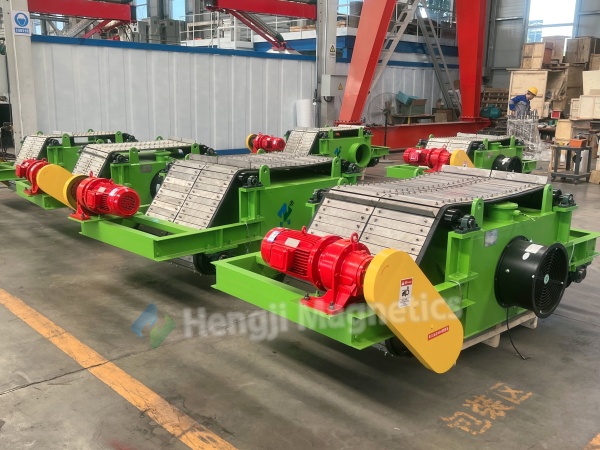

For insufficient iron removal, electro suspended magnets use computer-optimized magnetic circuits with deep penetration to ensure effective removal even through thick ore burdens. The excitation coils are wound with specialized electromagnetic wire using Class F insulation. The magnetic system is vacuum-encapsulated, completely isolating the windings from air—effectively resisting moisture and dust in harsh mine environments. The housing features wave-fin heat sinks that increase cooling surface area by three to four times, improving heat dissipation, reducing temperature rise, and enabling continuous operation.
For high energy consumption, the entire unit is optimally designed for low power consumption and low noise—saving over 30% energy compared to conventional separators. The control cabinet uses transformer rectification for stable current and voltage output, ensuring reliable long-term operation. For applications with low tramp iron content, a metal detector can be added so the electro suspended magnet activates only when metal is detected, further saving energy.
For equipment reliability, the unit uses electrical-grade resin encapsulation in a self-cooling, fully sealed structure. Features include deep magnetic penetration, strong lifting force, dust resistance, rain resistance, and corrosion resistance—ensuring reliable operation even in extremely harsh environments. Fully sealed cast steel bearing housings prevent dust ingress, extending bearing life and ensuring smooth operation. Daily maintenance is limited to cleaning dust from the unit and periodic bearing lubrication.
Customer Case Study: Iron Ore Mine Upgrade
An iron ore mine had long suffered from tramp iron contamination. Crushers were frequently damaged by tramp metal, requiring multiple maintenance stops each month with high repair costs. Conventional separators lacked the penetration depth to effectively capture tramp iron from thick ore layers, causing concentrate grade fluctuations in subsequent magnetic separation of iron ore stages and reducing product competitiveness.
After installing electro suspended magnets at the conveyor head, tramp iron was instantly lifted by the powerful electromagnetic field as ore passed beneath. The self-cleaning belt automatically ejected captured metal without manual intervention. The computer-optimized magnetic circuit provided deep penetration for effective iron removal even through thick ore layers. The fully sealed construction resisted dust and moisture, ensuring reliable operation in the mine’s harsh environment. Since installation, crusher failure rates dropped significantly, concentrate grade stabilized and improved, and overall operating costs decreased substantially.
Wide Application, Comprehensive Protection
Electro suspended magnets are widely used in power generation, mining, metallurgy, building materials, coal preparation, and chemicals. On iron ore processing lines—whether installed at the conveyor head or mid-section—they effectively remove tramp iron, protect crushers and grinding mills, and provide cleaner feed for subsequent magnetic separation of iron ore stages. This helps operations improve concentrate grade and reduce production costs.
Conclusion
Electro suspended magnets are essential equipment for efficient magnetic separation of iron ore. They protect crushers and grinding mills from tramp iron damage, ensure stable concentrate grade, and reduce operating costs. For any mining operation seeking to improve iron ore processing efficiency and product quality, electro suspended magnets offer a reliable, cost-effective solution.
