Magnetic Pulley Permanent Separator: Integrating Conveying and Iron Removal with a Robust Drum Design

On belt conveyor lines in mining, building materials, metallurgy, and coal industries, ferrous contaminants hidden in bulk materials pose a significant threat to downstream equipment. Anchor rods, bucket teeth, wire rope ends, bolts, and other tramp iron—once they enter crushers or mills—can cause abnormal wear, jams, or even equipment failure. Traditional solutions require additional suspended separators along the line, which consume space, increase equipment costs, and add power consumption. The magnetic pulley separator with permanent magnetic separator technology offers a simpler, more efficient integrated solution. By using a high‑performance permanent magnetic drum directly as the conveyor drive pulley, it simultaneously conveys material and automatically separates ferrous contaminants using the strong field generated by the internal magnetic system. This achieves “conveying‑as‑separation” process integration, reducing equipment footprint and simplifying the flow sheet.

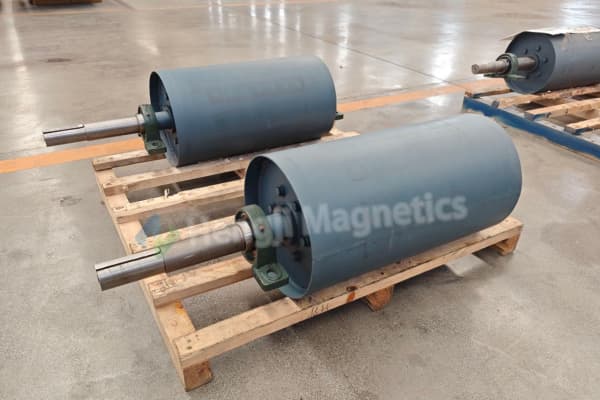

How Does a Magnetic Pulley Separator Work?

The core of this magnetic pulley separator lies in its permanent magnetic drum design. Inside the drum, a composite magnetic system made from high‑performance rare earth Neodymium magnets is computer‑optimized for high field strength and deep penetration. As material passes over the drum, ferrous contaminants are attracted to the drum or belt surface and carried to the non‑magnetic zone, where they automatically discharge. Non‑magnetic material passes through normally. The magnetic pulley separator can operate as a standalone unit for continuous automatic separation, or be integrated directly into standard fixed conveyors (TD‑75, AD‑80 series) as the drive pulley. When combined with an overhead separator, both systems work together for more complete iron removal from thick material layers.

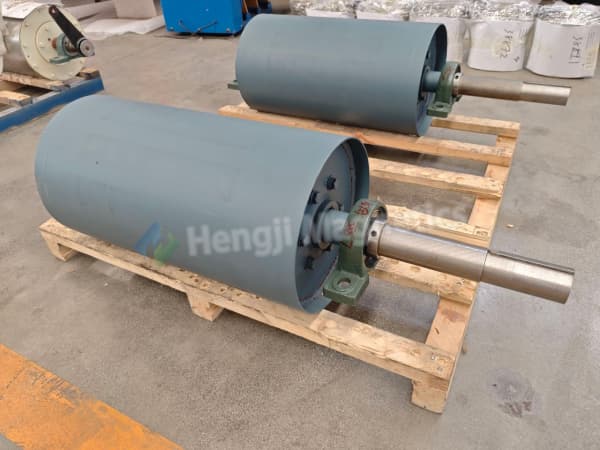

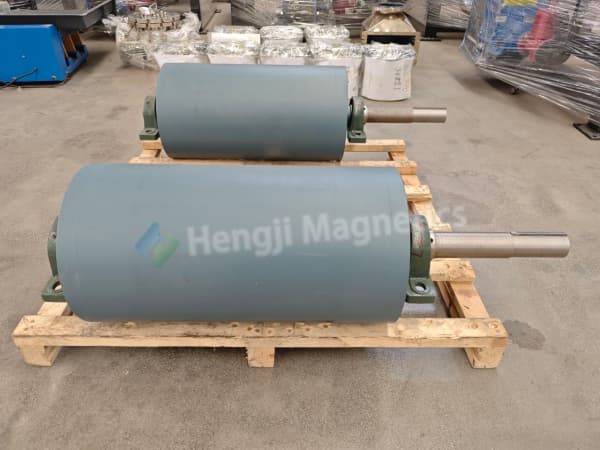

Key Customer Concerns About the Magnetic Pulley Separator

Separation Efficiency and Precision

Material on conveyor lines contains contaminants of varying particle sizes and magnetic strengths. The permanent magnetic separator drum surface field strength can be customized from 800 GS to 5,500 GS or higher, effectively capturing fine iron dust to heavy tramp iron weighing tens of kilograms. The stainless steel drum shell is available with plain steel or rubber lagging (plain, chevron, or diamond pattern) to suit different material characteristics and site conditions. The high‑performance Neodymium magnetic system guarantees less than 5% demagnetization over eight years, ensuring long‑term stable, maintenance‑free operation.

Installation Flexibility and Space Adaptability

Site layouts vary, and ease of integration affects project feasibility and cost. The magnetic pulley separator offers flexible installation. Bearing supports can be fixed to matching positions and adjusted so the drum centerline is level and aligned with the material flow. Adjust tie rods until optimal separation is achieved. For standalone use, the unit installs independently for continuous automatic separation. For conveyor integration, it replaces the existing drive pulley without major line modifications. This high installation flexibility makes the magnetic pulley separator suitable for both new projects and retrofits, significantly lowering adoption barriers.

Stability and Maintenance Convenience

Conveyor lines often run 24/7 in dusty, high‑vibration environments. Equipment reliability directly determines production stability. The permanent magnetic separator can be interlocked with the conveyor control system for local or centralized operation. The permanent magnetic system requires no external power, eliminating overheating risks. No dedicated operator is needed. Daily maintenance focuses on bearing greasing and periodic drum surface inspection. The stainless steel or rubber‑lagged drum provides excellent wear and corrosion resistance, even in outdoor or underground mining conditions. Explosion‑proof models meet high safety requirements.

Economic Value and Return on Investment

While the initial cost of a magnetic pulley separator may be slightly higher than a standard drum, its lifecycle economics are outstanding. The permanent magnetic system consumes no power, and the magnetic core lasts over ten years with virtually no demagnetization risk—zero ongoing maintenance costs for magnetic strength. It protects downstream crushers and mills, preventing equipment damage worth many times the separator’s price and avoiding costly unplanned downtime. The value of protected equipment and avoided production losses over the separator’s service life far exceeds the initial investment. This “small investment, big protection” characteristic makes the magnetic pulley separator a high‑return safety asset.

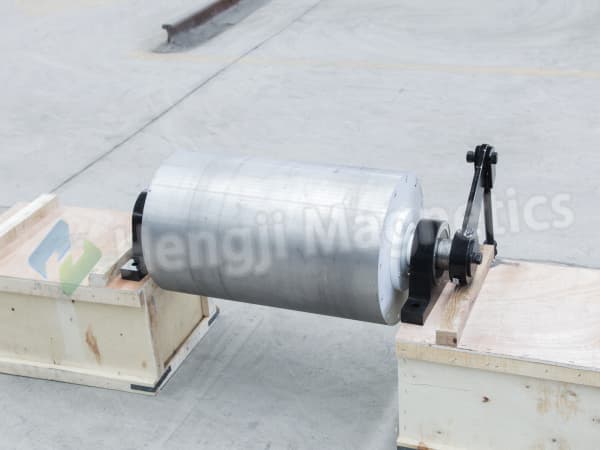

Applications of Magnetic Pulley Separators

Magnetic pulley separators with permanent magnetic separator technology are widely used in:

• Mining and aggregates: Removing tramp iron from ore before crushing.

• Coal handling: Extracting bolts, wire rope, and steel from run‑of‑mine coal.

• Building materials and cement: Capturing steel balls and broken mill liners.

• Recycling and waste processing: Separating ferrous metals from shredded waste.

Conclusion

The magnetic pulley separator powered by permanent magnetic separator technology offers an innovative, integrated solution for conveying and iron removal. With high field strength, flexible installation, zero‑energy operation, and low maintenance, it protects downstream equipment and ensures continuous production. For operations seeking simple, efficient, and cost‑effective tramp iron protection, the magnetic pulley separator is a strategic investment that delivers lasting value.
