Wet High Intensity Magnetic Separator: Boosting Efficiency in Magnetic Separation of Minerals

In the processing of hematite, limonite, manganese, ilmenite, and non-metallic ores, separating weakly magnetic minerals from gangue remains a persistent challenge. Conventional permanent magnetic separators are limited by their upper field strength and cannot effectively capture such minerals. The wet high intensity magnetic separator has emerged as a practical industrial solution, using electromagnetic high-gradient technology to address this difficulty. This article explores how this equipment meets customer concerns about separation efficiency, precision, and long-term reliability in magnetic separation of minerals.

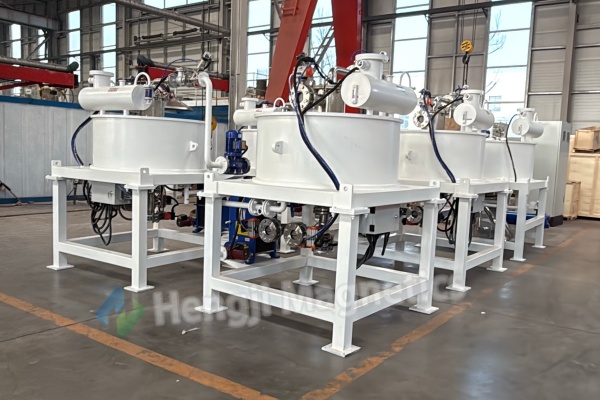

How Does a Wet High Intensity Magnetic Separator Achieve High-Gradient Capture?

The core value of the wet high intensity magnetic separator lies in its ability to generate far higher field strength than conventional permanent units. Its working principle is based on an electromagnetic excitation system. Direct current energizes the coil, producing a field exceeding 1 Tesla in the separation chamber. Combined with specially designed high-gradient matrices, this creates an extremely high magnetic gradient in the separation zone.

When slurry enters the chamber and flows through the matrix, even weakly magnetic particles with very low susceptibility—hematite, limonite—are captured by the strong magnetic force and held on the matrix surface. Non‑magnetic gangue passes through smoothly into the tailings. By de‑energizing the coil or switching to low field, and applying high‑pressure rinse water, the captured magnetic particles are thoroughly washed out as concentrate. This complete cycle enables the wet high intensity magnetic separator to achieve efficient enrichment and purification of weakly magnetic minerals in magnetic separation of minerals.

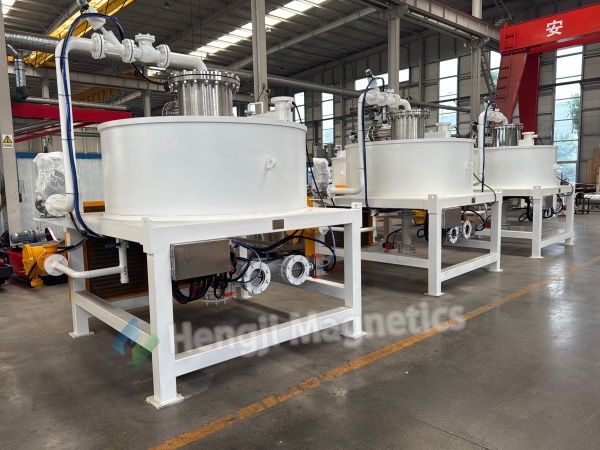

How Does a Wet High Intensity Magnetic Separator Ensure Separation Precision?

For customers using a wet high intensity magnetic separator in magnetic separation of minerals, the key concerns are whether the equipment can effectively upgrade low‑grade weakly magnetic ores, and whether separation precision meets expectations. These are the primary technical challenges the equipment is designed to overcome.

To handle varying magnetic susceptibilities, the electromagnetic system includes an adjustable excitation power supply. Operators can tune the field strength from several thousand Gauss for low‑intensity duty up to 1.5 Tesla or higher for strong‑intensity separation, covering a wide range of applications. The matrix is carefully designed and arranged to create a uniform, dense high‑gradient field zone, ensuring that every portion of slurry receives adequate exposure.

A pulsating mechanism, adjustable via a variable‑frequency drive, keeps the slurry in a suspended, loosely dispersed state during separation, preventing mechanical entrainment and further improving precision. This combination of strong field and controlled pulsation allows the wet high intensity magnetic separator to achieve satisfactory grade and recovery even when processing fine, low‑grade weakly magnetic ores.

What About Cooling, Reliability, and Maintenance?

Long‑term mechanical reliability and ease of maintenance are also critical factors in evaluating magnetic separation of minerals solutions. The high‑power electromagnetic system generates significant heat, so thermal design directly affects equipment life and safety.

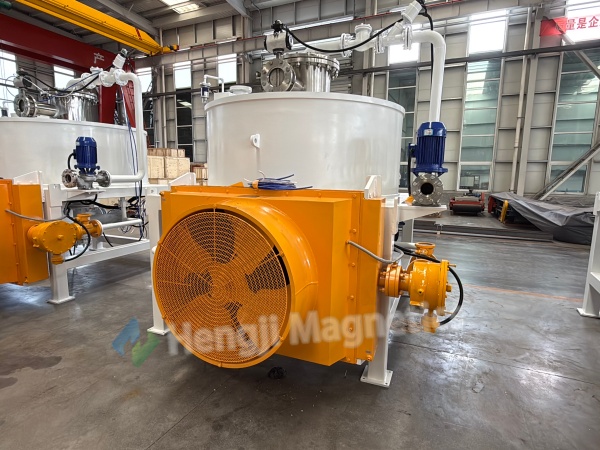

Advanced wet high intensity magnetic separator units use a fully sealed oil‑cooled external circulation system. The coil is immersed in transformer oil, circulated by a dedicated pump, and cooled by a forced‑air radiator. This effectively controls coil temperature rise, delays insulation aging, and ensures stable, reliable operation over many years of service.

Key structural components—the rotating ring, matrix boxes—are made from high‑wear materials and precision‑machined to maintain accuracy under repeated discharge and flushing impacts. Modular design of core electromechanical parts simplifies inspection and replacement, reducing maintenance costs and unplanned downtime. Choosing a well‑engineered wet high intensity magnetic separator means selecting a durable “purification engine” that can tackle difficult magnetic separation of minerals tasks while maintaining stable performance under harsh conditions.

Which Mineral Applications Benefit Most from a Wet High Intensity Magnetic Separator?

The wet high intensity magnetic separator is used wherever weakly magnetic minerals need to be upgraded or contaminants removed in magnetic separation of minerals:

• Hematite and limonite: Upgrading low‑grade iron ores to concentrate suitable for pelletizing or sintering.

• Manganese ores: Removing iron and other magnetic impurities to improve manganese grade.

• Ilmenite and titanomagnetite: Separating titanium‑bearing minerals from siliceous gangue.

• Non‑metallic minerals: Iron removal from kaolin, quartz, feldspar to achieve whiteness for ceramics, glass, and fillers.

• Rare earth ores: Pre‑concentration of weakly magnetic rare earth minerals before flotation or leaching.

In every case, the wet high intensity magnetic separator enables effective magnetic separation of minerals that would be impossible with conventional equipment.

What Are the Key Operating Parameters for a Wet High Intensity Magnetic Separator?

To maximize performance of a wet high intensity magnetic separator in magnetic separation of minerals, operators should monitor and adjust these parameters:

• Excitation current: Sets the field strength. Increase for weakly magnetic fines; decrease to reduce power consumption if feed grade improves.

• Pulsation amplitude and frequency: Controls particle agitation. Higher pulsation reduces mechanical entrainment but may reduce retention time.

• Rinse water pressure: Ensures complete discharge of captured magnetics without washing valuable particles into tailings.

• Feed density: Keep between 25‑35% solids for optimal flow and magnetic capture.

• Matrix condition: Inspect periodically for wear or clogging; replace as needed to maintain gradient performance.

Conclusion: The Reliable Solution for Weakly Magnetic Mineral Processing

The wet high intensity magnetic separator has proven itself as the go‑to technology for challenging magnetic separation of minerals tasks. With adjustable high‑gradient fields, precision pulsation control, robust oil‑cooled construction, and low‑maintenance modular components, it delivers efficient, consistent upgrading of hematite, limonite, ilmenite, manganese, and non‑metallic ores. For mines seeking to convert low‑grade resources into saleable concentrates, the wet high intensity magnetic separator is the strategic investment that drives technical and economic success.
